XZCPY4275L2

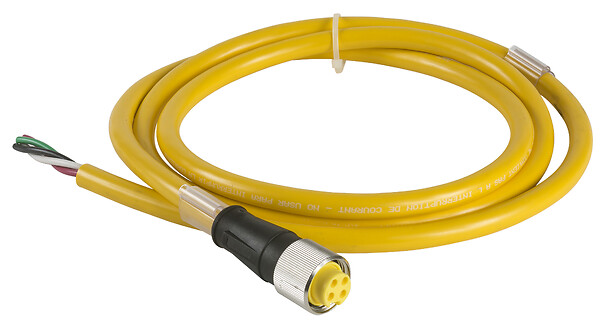

Pre-wired connectors XZ - straight female - 7/8" - 4 pins - cable PVC 2m
End of commercialisation Datum der Produktabkündigung : Datum des Service-Endes :
Alle erweitern
Datenblatt
Accessory / separate part category
Cabling accessory
Accessory / separate part type
Pre-wired connectors
Electrical connection
Straight female connector 7/8", 4 pins
Collar material
Metal
Cable composition
4 x 1.5 mm²
Wire insulation material
PVC
[Ue] rated operational voltage
600 V AC, 600 V DC
Insulating resistance
1 GIGAOHM
IP degree of protection
IP67
Product certifications
cULus
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
3.5 CENTIMETER
Package 1 width
22 CENTIMETER
Package 1 length
24 CENTIMETER
Package 1 weight
330 GRAM
California proposition 65
WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP) and Diisononyl phthalate (DINP) which is known to the State of California to cause Carcinogen and Reproductive harm. For more information go to www.p65warnings.ca.gov
Alle erweitern
Technische Zeichnungen
Dimensions
- L : Length of cable
Connections and Schemes
Connectors
- RD : Red
- WH : White
- BK : Black
- GN : Green
