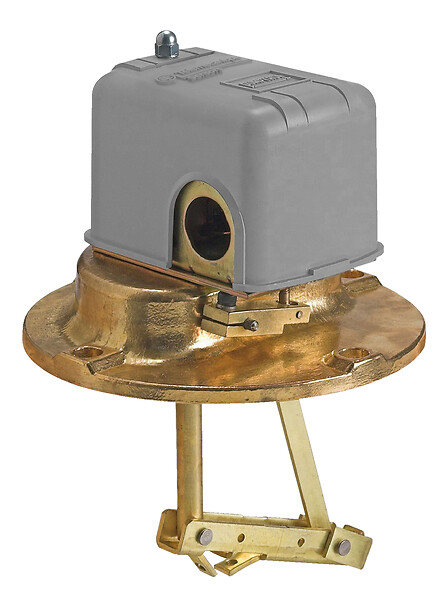

9036FG30
Float switch, Pumptrol, open tank, NEMA 1, pedestal mounted, 2 NC DPST DB contacts
Commercialised
Expand all
Datasheet
Range of product
Pumptrol
Product or component type
Float switch
Device application
Open tank pedestal style
Device short name
9036FG
Product specific application
Liquid level control
Electrical circuit type
Power circuit
Quantity per set
Set of 1
Type of packing
Individual
Product destination
For open tank or sump
Device mounting
Pedestal
Contacts type and composition
2 NC, snap action, DPST-DB, Form YY
Controlled fluid
Fresh water at specific gravity of 0.85 in or higher, sea water at specific gravity of 0.85 in or higher, hydraulic oil at specific gravity of 0.85 in or higher, corrosive fluid at specific gravity of 0.85 in or higher
Electrical connection
Screw-clamp terminals, clamping capacity: 10 AWG
Contact operation
Contacts close on liquid rise
Float movement
4...31 in adjustable
Float position
Any
Float rod angle
Vertical
Local signalling
Without
Materials in contact with fluid
Aluminium
nylon
polystyrene
zinc plated steel or equivalent
nylon
polystyrene
zinc plated steel or equivalent
Enclosure material
Polypropylene or equivalent
Operating position
Vertical position only
Terminal block type
4 terminals
Operating rate
60 CYCLE_PER_MINUTE
Terminals description ISO n°1
Line-load-load-line
Factory modification
Without
Kit composition
Float switch
rod and float are to be choosen in accessories
rod and float are to be choosen in accessories
Standards
CE
UL 508
UL 508
NEMA degree of protection
NEMA 1 conforming to UL 50
Product certifications
CSA
UL listed
UL listed
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
50 CENTIMETER
Package 1 width
19.685 CENTIMETER
Package 1 weight
657.709 GRAM
Package 1 length
127 CENTIMETER
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. Fo more information go to www.P65Warnings.ca.gov
