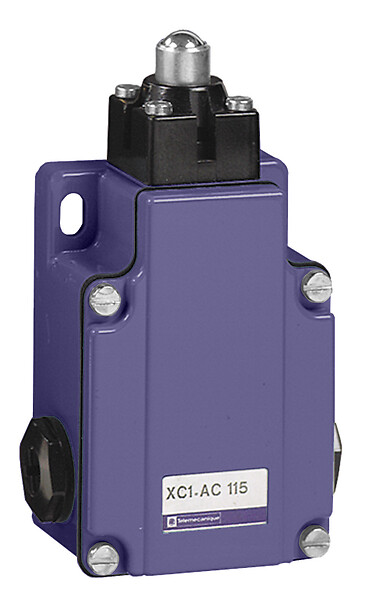

XC1AC001
Limit switch, Limit switches XC Standard, BOX, Plunger head, screw connection
End of commercialisation End of commercialization date : End of service date :
XC1AC001 is replaced by the following product:
Quantity : 1
Expand all
Datasheet
Range of product
OsiSense XC
Series name
Special format
Product or component type
Limit switch
Product specific application
Materials handling
Device short name
XC1AC
Sensor design
-
Body type
Fixed
Head type
Plunger head
Material
Metal
Fixing mode
By the body
Movement of operating head
Linear
Electrical connection
Screw-clamp terminals, clamping capacity: 1 x 0.5...1 x 2.5 mm²
Positive opening
Without
Resistance across terminals
8 mOhm
Terminals description ISO n°1
(11-12)NC
(13-14)NO
(13-14)NO
Shock resistance
95 gn for 11 ms conforming to IEC 60068-2-27
Vibration resistance
9 gn (f= 10-500 Hz) conforming to IEC 60068-2-6
IP degree of protection
IP65 conforming to IEC 60529, IP65 conforming to NF C 20-010
Electrical shock protection class
Class I conforming to IEC 61140, class I conforming to NF C 20-030
Protective treatment
TC
Operating position
Any position
Product certifications
CSA
Standards
CSA C22.2 No 14
EN 60947-5-1
IEC 60337-1
IEC 60947-5-1
VDE 0660-200
EN 60947-5-1
IEC 60337-1
IEC 60947-5-1
VDE 0660-200
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
5.5 CENTIMETER
Package 1 width
9 CENTIMETER
Package 1 length
15.5 CENTIMETER
Package 1 weight
536 GRAM
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
