XULM06031H7H60

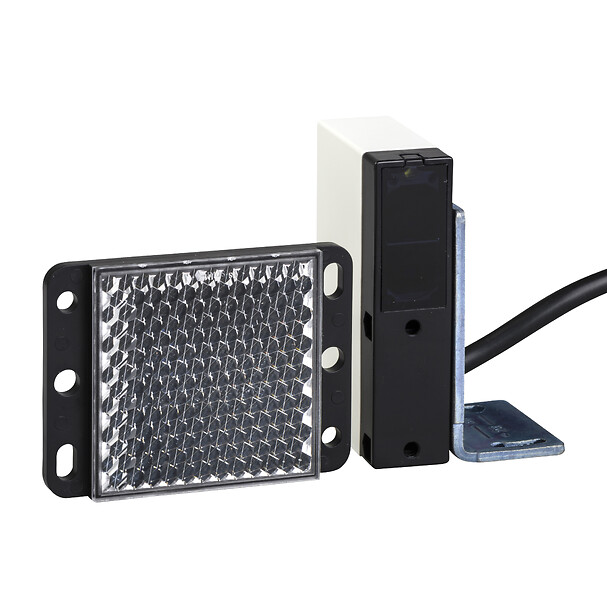

Photo-electric sensor - XUL - reflex - 24..240VAC/DC - cable 2m
End of commercialisation End of commercialization date : End of service date :
XULM06031H7H60 is replaced by the following product:
Quantity : 1
Expand all
Datasheet
Range of product
Telemecanique Photoelectric sensors XU
Series name
General purpose single mode
Electronic sensor type
Photo-electric sensor
Sensor name
XUL
Sensor design
Compact
Detection system
Reflex
Material
Plastic
Type of output signal
Discrete
Supply circuit type
AC/DC
Wiring technique
5-wire
[Sn] nominal sensing distance
6-6 m reflex need reflector XUZC80
Discrete output function
1 NC
Electrical connection
Cable
Emission
Infrared reflex
Enclosure material
ABS
Lens material
PMMA
Output type
Relay
Add on output
Without
Wire insulation material
PVC
Cable composition
5 x 0.34 mm²
Status LED
1 LED for output state
[Us] rated supply voltage
24...240 V AC/DC
Output voltage
<= 250 V
Switching capacity in mA
<= 100 mA (overload and short-circuit protection)
Switching frequency
20 Hz
Current consumption
<= 40 mA no-load
Delay first up
60 MILLISECOND
Delay response
25 MILLISECOND
Delay recovery
25 MILLISECOND
Setting-up
Without sensitivity adjustment
Product certifications
CE
Vibration resistance
7 gn, amplitude = +/- 2 mm (f = 10-55 Hz) conforming to IEC 60068-2-6
Shock resistance
20 gn (duration = 11 ms) conforming to IEC 60068-2-27
IP degree of protection
IP67 conforming to IEC 60529, IP671 conforming to NF C 20-010
Unit type of package 1
PCE
Number of units in package 1
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. Fo more information go to www.P65Warnings.ca.gov
