XUMTARAYP015

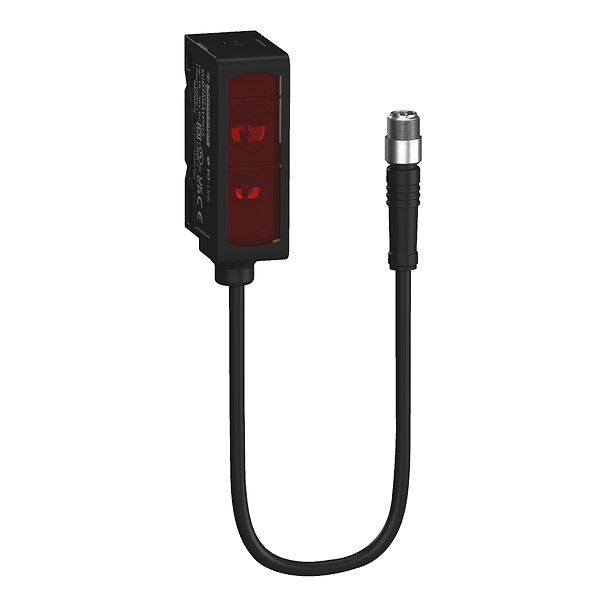

Photoelectric sensors XUMT, Transparent reflex, Plastic, Sn 2m, IO-Link, Pigtail M12 15cm

arrow

Commercialised

Download pdf datasheet Download 3d cad file Find a distributor

Expand all

Datasheet

Range of product
Telemecanique Photoelectric sensors XU
Sensor name
XUM
Series name
Application packaging
Product specific application
Detection of transparent object
Enclosure material
ABS
Electronic sensor type
Photo-electric sensor
Sensor design
Miniature
Electrical connection
1 pre-cabled male connector M12, 4 pins
Material
Plastic
Detection system
Reflex
Emission
Red reflex
Discrete output function
1 NO or 1 NC programmable
[Us] rated supply voltage
12...24 V DC with reverse polarity protection
Type of output signal
Discrete
Supply circuit type
DC
Discrete output type
IOLINK
PNP/NPN autodetect
Delay response
500 MICROSECOND
Setting-up
Sensitivity by IO-Link
sensitivity adjustment with teach mode
Current consumption
<= 30 mA no-load
Output type
Solid state
Switching capacity in mA
<= 100 mA (overload and short-circuit protection)
Lens material
PMMA
Add on output
Without, 100 mA
Status LED
1 LED (green) for power ON, 1 LED (orange) for output state
Sensing range
> 0...2 m
Delay first up
300 MILLISECOND
Delay recovery
300 MILLISECOND
IP degree of protection
IP67 conforming to IEC 60529, IP69K conforming to DIN 40050-9
Unit type of package 1
PCE
Number of units in package 1
1
Unit type of package 2
S01
Number of units in package 2
30
Package 2 height
15 CENTIMETER
Package 2 width
15 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
1.255 KILOGRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. Fo more information go to www.P65Warnings.ca.gov
