9013FHG34J52M1X

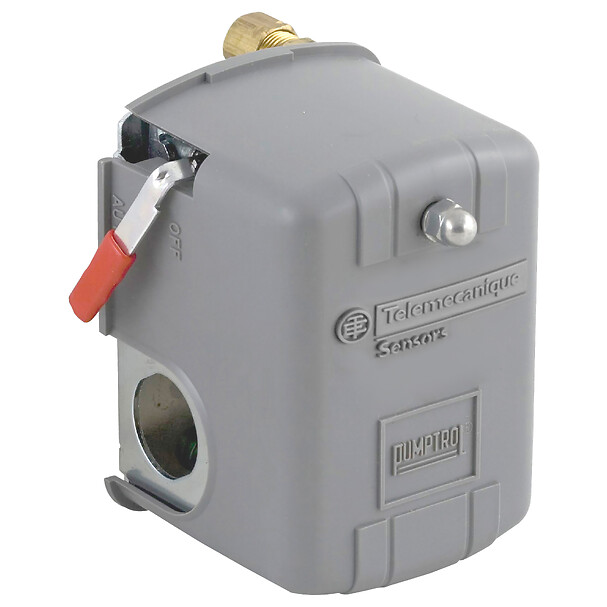

Pumptrol, air compressor switch 9013FH, fixed differential, Off at 125 PSI, high hp
Commercialised
Expand all
Datasheet
Range of product
Pumptrol
Pressure sensor name
9013FH
Value of setting
Off at 125 psi
Electrical circuit type
Power circuit
Product specific application
Control small electrically driven air compressors
Quantity per set
1
Type of packing
Individual
Pressure sensor type
Electromechanical pressure switch
Controlled fluid
Air (32-158 °F)
Pressure actuator
Diaphragm
Pressure switch type of operation
Regulation between 2 thresholds
Scale type
Fixed differential
Setting
Internal
Local display
Without
Contacts type and composition
2 NC, snap action, DPST-DB, Form YY
Electrical connection
Screw-clamp terminals, clamping capacity: 10 AWG, screw-clamp terminals, clamping capacity: 5.261 mm²
Fluid connection type
0.25 inch 4-way flange conforming to UL 508
Materials in contact with fluid
Zinc plated steel or equivalent flange, nitrile (Buna-N) or equivalent rubber diaphragm
Material
Polypropylene: cover, noryl thermoplastic resin or equivalent: cover
Operating position
Any position
Terminal block type
4 terminals
Operating rate
10 CYCLE_PER_MINUTE
Repeat accuracy
+/- 3 %
Terminals description ISO n°1
L1-T1
L2-T2
L2-T2
Factory modification
2-way pressure release valve
maintained manual cut-out lever (AUTO-OFF)
maintained manual cut-out lever (AUTO-OFF)
Standards
CE
UL 508
UL 508
Protective treatment
None
NEMA degree of protection
NEMA 1 conforming to UL 50
IP degree of protection
IP20 conforming to IEC 60529
Product certifications
CSA
UL listed
UL listed
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
9.1 CENTIMETER
Package 1 width
11.7 CENTIMETER
Package 1 length
13.5 CENTIMETER
Package 1 weight
458.1 GRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
