XPSLCM1150

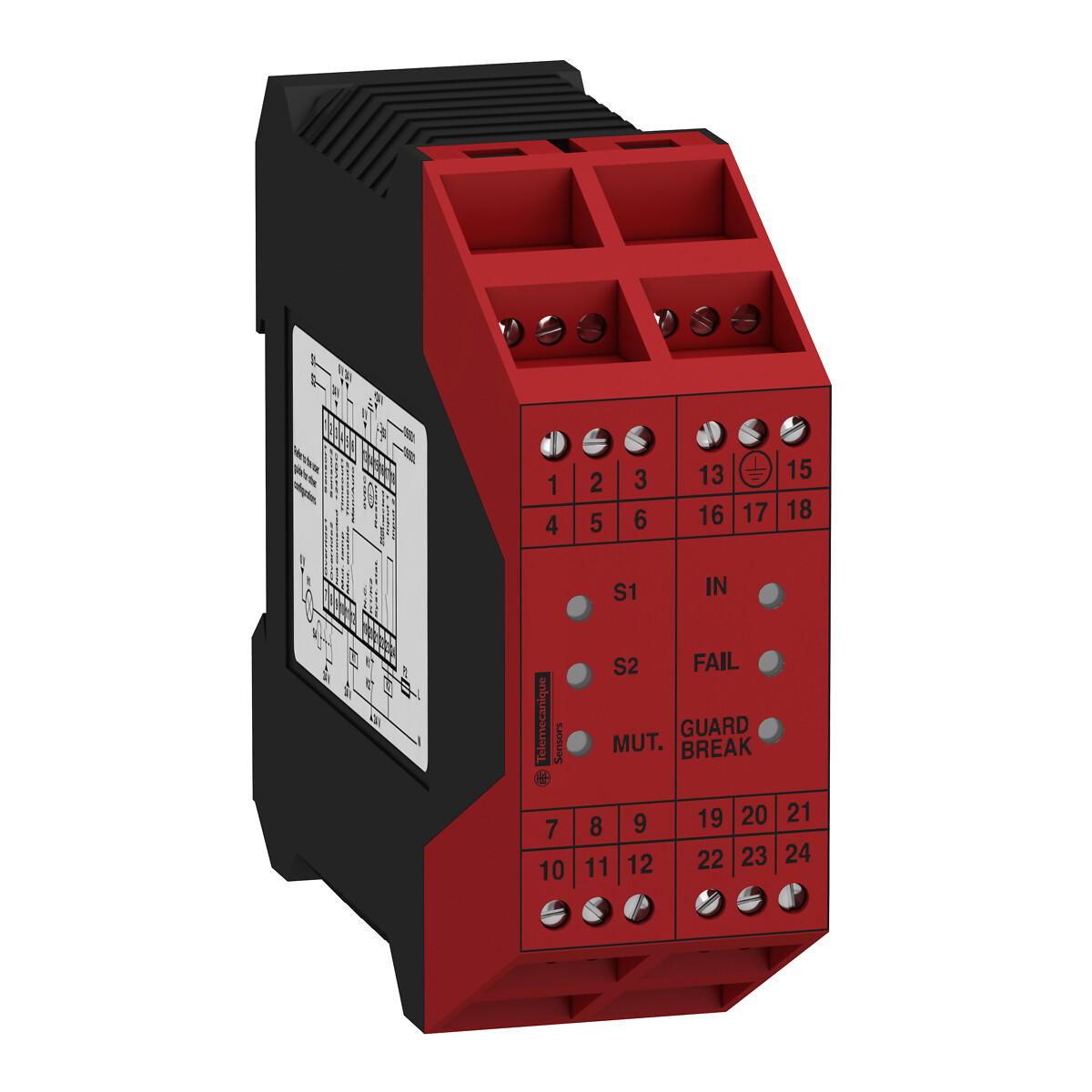

Module XPSLC - monitoring mute function safety light curtain - type 2+4- 24VDC

End of commercialisation End of commercialization date : End of service date :

Download pdf datasheet Download 3d cad file Find a distributor

XPSLCM1150 is replaced by the following product:

XPSLCMUT1160

Preventa safety module, Preventa Safety automation, XPSLC, Monitoring mute function light curtain, type2, type4

Quantity :  1

Expand all

Datasheet

Range of product
Telemecanique Safety light curtains XUSL
Product or component type
Preventa safety module
Safety module name
XPSLCM
Safety module application
For the muting function of type 2 and type 4 safety light curtains monitored
Safety level
Can reach PL = e with the appropriate control system and correctly wired conforming to ISO 13849-1, can reach category 4 with the appropriate control system and correctly wired conforming to ISO 13849-1, can reach SILCL 3 with the appropriate control system and correctly wired conforming to IEC 62061
Safety reliability data
MTTFd = 437 years conforming to ISO 13849-1, DC >= 95 % conforming to ISO 13849-1, PFH = 1.32E-9 1/h conforming to IEC 61508, PFHd = 1.32E-9 1/h conforming to IEC 62061
Synchronisation time between inputs
-
Connections - terminals
Captive screw clamp terminals, removable terminal block, 1 x 0.14...1 x 1.5 mm² flexible without cable end, captive screw clamp terminals, removable terminal block, 1 x 4 mm² solid without cable end, captive screw clamp terminals, removable terminal block, 2 x 0.14...2 x 1.5 mm² solid without cable end, captive screw clamp terminals, removable terminal block, 2 x 0.14...2 x 7.5 mm² flexible without cable end, captive screw clamp terminals, removable terminal block, 1 x 0.14...1 x 1.5 mm² flexible with cable end, without bezel
Output type
-
Number of additional circuits
-
[Us] rated supply voltage
24 V DC - 10...10 %
Function of module
Muting
Muting maximum duration
2 min or unlimited
Marking
CE
Power consumption in W
150 WATT
Number of controlled devices
-
Input compatibility
-
Response time on input open
1 MILLISECOND
Local signalling
14 LEDs, 2 digits display
Mounting support
35 mm symmetrical DIN rail
IP degree of protection
IP20 conforming to IEC 60529
Product certifications
CSA
TÜV
UL
Standards
IEC 60204-1
IEC 60947-1
IEC 60947-5-1
IEC 61496-1
IEC 61496-2
Unit type of package 1
PCE
Number of units in package 1
1

Expand all

Documents & Downloads

Document name
Date
Size
XPSLCM1150 Safety Light Curtains Mute Module, User manual (pdf)

2007-09-04

873447
