XS1N05PA310L2

Inductive proximity sensors XS, inductive sensor XS1 M5, L28mm, brass, Sn1mm, 5..24VDC, cable 10m

End of commercialisation End of commercialization date : End of service date :

Download pdf datasheet Download 3d cad file Find a distributor

XS1N05PA310L2 is replaced by the following product:

XS1N05PA311S

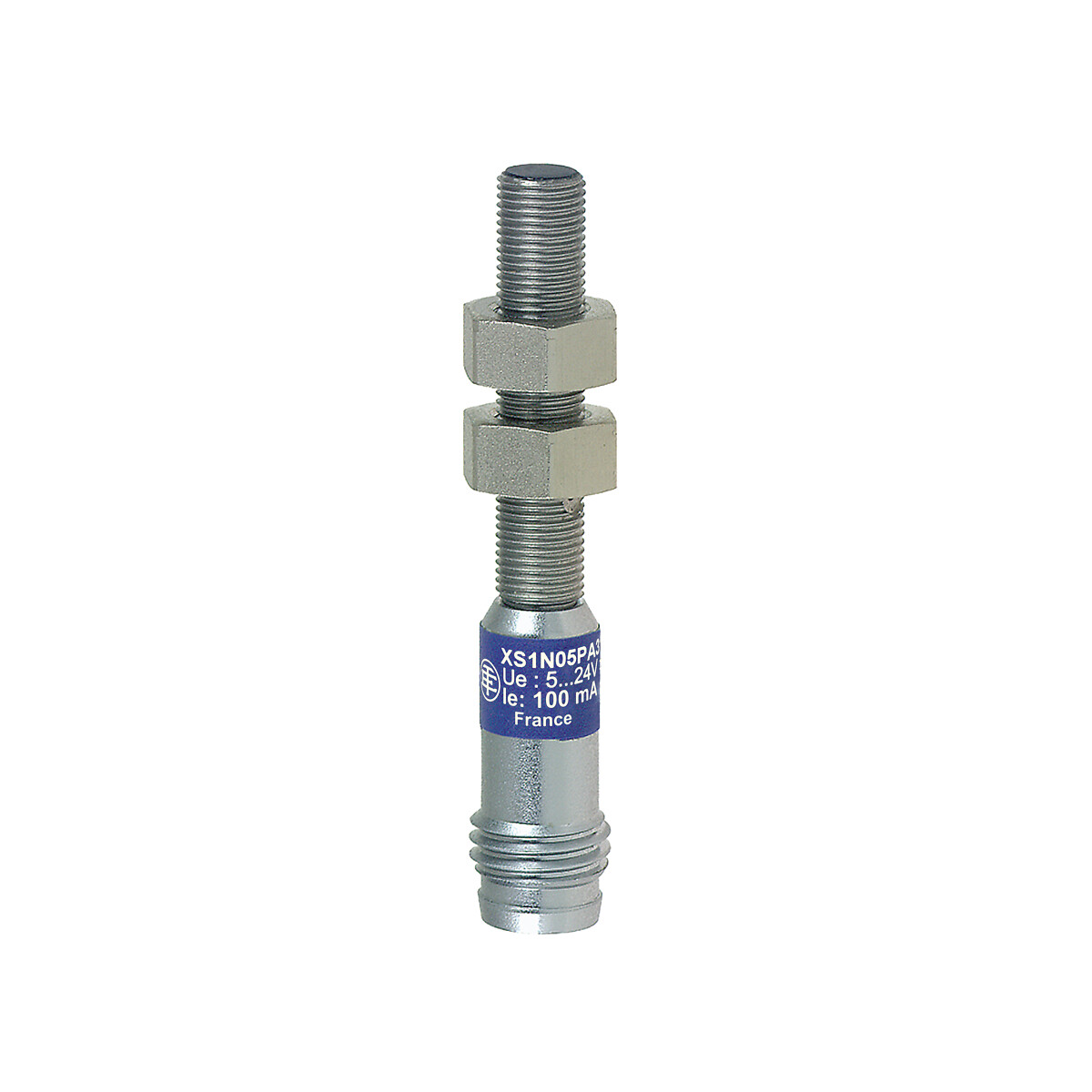

Inductive proximity sensors XS, inductive sensor XS1 M5, L42mm, stainless, Sn0.8mm, 5..24VDC, M8

Quantity :  1

XZCPV0566L10

Pre wired connectors XZ, straight female, M8, 3 pins, cable PVC 10 m

Quantity :  1

Expand all

Datasheet

Range of product
Telemecanique Inductive proximity sensors XS
Series name
General purpose
Sensor type
Inductive proximity sensor
Sensor name
XS1
Device application
Not applicable
Sensor design
Cylindrical M5
Size
28 mm
Body type
Fixed
Type of output signal
Discrete
Wiring technique
3-wire
Discrete output function
1 NO
Detector flush mounting acceptance
Flush mountable
Discrete output type
PNP
Material
Metal
Electrical connection
Cable
[Us] rated supply voltage
5...24 V DC
Output circuit type
DC
Switching capacity in mA
<= 100 mA with overload and short-circuit protection
IP degree of protection
IP67 conforming to IEC 60529
Enclosure material
Nickel plated brass
Detection face
Frontal
Thread type
M5 x 0.5
Front material
PPS
Sensing range
> 0...2.5 mm
Cable composition
3 x 0.11 mm²
Status LED
Output state: 1 LED (yellow)
Wire insulation material
PVC
Switching frequency
<= 5000 Hz
Voltage drop
<2 V (closed)
Current consumption
<= 10 mA no-load
Delay first up
5 MILLISECOND
Delay response
1 MILLISECOND
Marking
CE
Delay recovery
1 MILLISECOND
Product certifications
CSA
Vibration resistance
25 gn amplitude = +/- 2 mm (f = 10-55 Hz) conforming to IEC 60068-2-6
Shock resistance
50 gn for 11 ms conforming to IEC 60068-2-27
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
4.5 CENTIMETER
Package 1 width
8 CENTIMETER
Package 1 length
14.5 CENTIMETER
Package 1 weight
143 GRAM
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Expand all

Technical Drawings

Dimensions

epds
  • (1) LED

Minimum Mounting Distances in mm

epds
  • e (1) ≥ 2 mm/0.79 in.
epds
  • e (1) ≥ 2 mm/0.79 in.
  • e (2) ≥ 12 mm/0.47 in.
epds
  • e (1) ≥ 2 mm/0.79 in.
  • e (2) ≥ 12 mm/0.47 in.
  • e (3) ≥ 3 mm/0.12 in.
epds
  • e (1) ≥ 2 mm/0.79 in.
  • e (2) ≥ 12 mm/0.47 in.
  • e (3) ≥ 3 mm/0.12 in.
  • d ≥ 5 mm/0.17 in.
  • h ≥ 0 mm/0 in.

Mounting

epds
  • (1) Bending cable: 4 x external cable diameter

Wiring Schemes

epds
  • BU : Blue
  • BN : Brown
  • BK : Black

Performance Curves

Standard Steel Target (mm) : 5x5x1

epds
  • Pick-up points
  • Drop-out points (object approaching from the side)
  • (y) Sensing distance in mm
