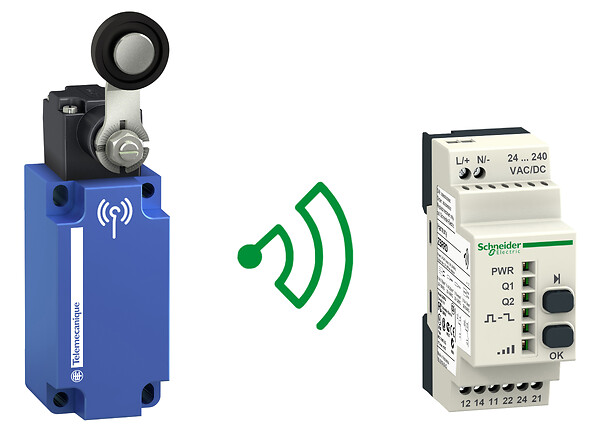

XCKWD31
Wireless pack, Limit switches XC Standard, limit switch XCKW, of XCKW131 + receiver 2 relays
End of commercialisation Data do fim da comercialização : Data do fim do serviço :
XCKWD31 is replaced by the following product:
XCMWD15
Wireless pack, Limit switches XC Standard, limit switch XCMW, of XCMW115 + receiver 2 relays
Quantity : 1
Expandir tudo
Folha de dados
Range of product
Telemecanique Limit switches XC Standard
Series name
Standard format
Product or component type
Wireless pack
Device short name
XCKW
Sensor design
Miniature
Kit composition
1 receiver 2 relays output, 1 wireless limit switch with spring return roller lever
Type of operator
Spring return roller lever thermoplastic variable length
Type of approach
Lateral approach, 1 or 2 programmable direction
Communication network type
ZigBee green power - 2.4 GHz conforming to IEEE 802.15.4
Electromagnetic compatibility
Radiated emission, immunity for industrial environments, susceptibility to electromagnetic fields - test level: 3 V/m (80...2700 MHz, distance = 20 m), susceptibility to electromagnetic fields - test level: 10 V/m (80...2000 MHz), electrostatic discharge immunity test - test level: 6 kV (on contact (on metal parts)), electrostatic discharge immunity test - test level: 8 kV (in free air (in insulating parts))
Shock resistance
50 gn for 11 ms conforming to IEC 60068-2-27
Vibration resistance
+/- 10 mm conforming to IEC 60068-2-6, 25 gn conforming to IEC 60068-2-6
IP degree of protection
IP65 conforming to IEC 60529
IK degree of protection
IK04 conforming to IEC 62262
Radio agreement
IC conforming to RSS, FCC conforming to RCM
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
8.8 CENTIMETER
Package 1 width
20.4 CENTIMETER
Package 1 length
16 CENTIMETER
Package 1 weight
394 GRAM
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
