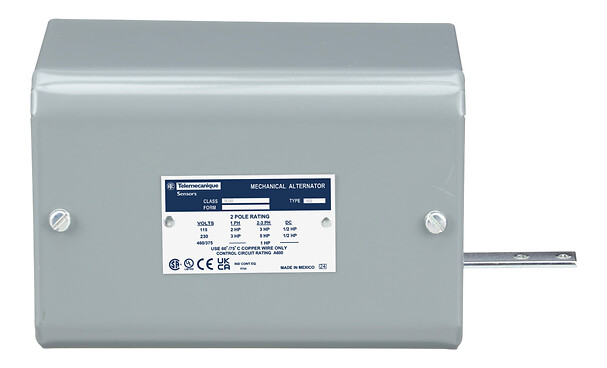

9038AG1
Mechanical alternator, Pumptrol, mech open tank, NEMA 1, pedestal mounted, 4 NC DPST DB contacts
Commercialised
Expand all
Datasheet
Range of product
Pumptrol
Product or component type
Mechanical alternator
Device short name
9038A
Device application
Open tank
Product specific application
Mechanically alternating the operation of two pumps or motors
Electrical circuit type
Power circuit
Quantity per set
Set of 1
Type of packing
Individual
Product destination
For open tank
Device mounting
Pedestal
Contacts type and composition
4 NC, snap action, DPST-DB, Form YY
Controlled fluid
Fresh water at specific gravity of 0.85 in or higher, sea water at specific gravity of 0.85 in or higher, hydraulic oil at specific gravity of 0.85 in or higher, corrosive fluid at specific gravity of 0.85 in or higher
Electrical connection
Screw-clamp terminals, clamping capacity: 10 AWG
Float position
Any
Contact operation
Contacts close on liquid rise
Float movement
Variable adjustable
Float rod angle
Vertical
Local signalling
Without
Enclosure material
Painted cold-rolled steel
Operating position
Vertical position only
Terminal block type
8 terminals
Operating rate
60 CYCLE_PER_MINUTE
Terminals description ISO n°1
Line-load-load-line
Factory modification
Without
Kit composition
Float switch
rod and float are to be choosen in accessories
rod and float are to be choosen in accessories
Standards
CE
UL 508
UL 508
NEMA degree of protection
NEMA 1 conforming to UL 50
Product certifications
CSA
UL listed
UL listed
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
13.2 CENTIMETER
Package 1 width
14.5 CENTIMETER
Package 1 length
25.4 CENTIMETER
Package 1 weight
2.05 KILOGRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
