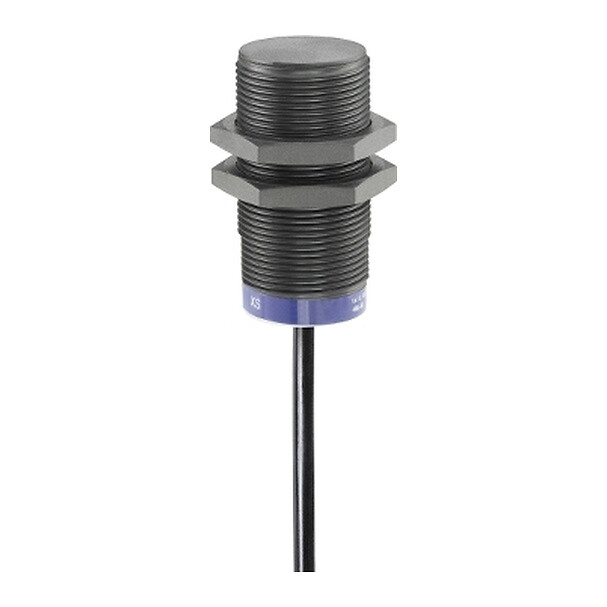

XS4P18AB110L1

电感式传感器,XS4,M18,感应距离8毫米,电缆5米,长度41毫米,24...48伏直流电

arrow

PRECOMMERCIALISATION

Expand all

Datasheet

Range of product
Telemecanique Inductive proximity sensors XS
Series name
Application
Sensor name
XS4
Sensor type
Inductive proximity sensor
Sensor design
Cylindrical M18
ETIM classification
ETIM 9 - EC002714 - Inductive proximity switch
Body type
Fixed
Material
Plastic
Front material
PPS
Enclosure material
PBT
[Sn] nominal sensing distance
8 mm
Wiring technique
3-wire
Detector flush mounting acceptance
Non flush mountable
Thread type
M18 x 1
Product certifications
CCC
CSA
UL
Marking
CE
Indivisible sale quantity
1
Sensing range
> 4...8 mm
Repeat accuracy
<= 3% of Sr
Electrical connection
Cable
Cable length
5 m
Cable composition
3 x 0.34 mm²
Wire insulation material
PVC
Supply voltage limits
15-58 V DC
[Us] rated supply voltage
24...48 V DC
Current consumption
4 mA no-load
Output circuit type
DC
Type of output signal
Analogue
Output current drift
10 %
Detection face
Frontal
Analogue output range
0...10 V
Switching frequency
<= 500 Hz
Linearity error
+/- 2 mA
Threaded length
26 mm
Length
41 mm
Size
41 mm
IP degree of protection
IP67 conforming to IEC 60529
Ambient air temperature for operation
-25…70 °C
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Warranty
18 months
Country of origin
FR (France)
Unit type of package 1
PCE
Number of units in package 1
1
3666916015131
Package 1 height
3.7 cm
Package 1 width
12.4 cm
Package 1 length
13.3 cm
Package 1 weight
0.159 kg
Unit type of package 2
S02
Number of units in package 2
14
13666916015138
Package 2 height
15 cm
Package 2 width
30 cm
Package 2 length
40 cm
Package 2 weight
2.535 kg
Unit type of package 3
CAR
Number of units in package 3
1
23666916015135
Package 3 height
13.2 cm
Package 3 width
6.7 cm
Package 3 length
9.5 cm
Package 3 weight
0.18 kg
