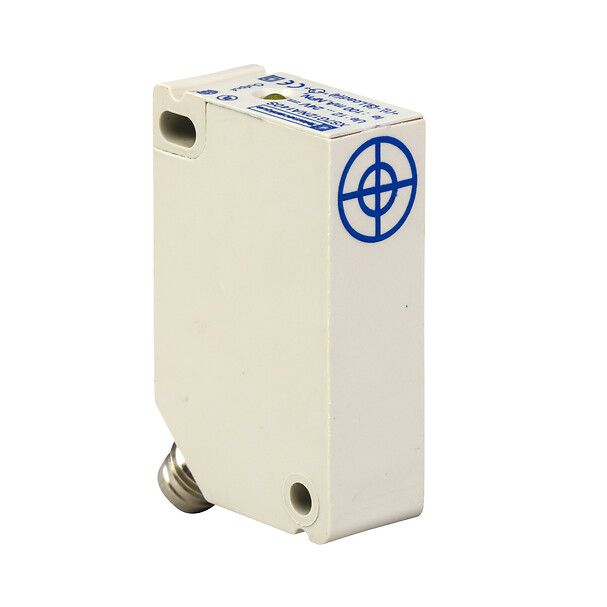

XS8G12PA140S
Inductive proximity sensors XS, inductive sensor XS8 12x40x26, plastic, Sn4mm, 12...24 VDC, M8
End of commercialisation End of commercialization date : End of service date :
XS8G12PA140S is replaced by the following product:
XS8G12PC440
Inductive proximity sensors XS, inductive sensor XS8 12x40x26, plastic, Sn4mm, 12...48 VDC, cable 2 m
Quantity : 1
Quantity : 1
Expand all
Datasheet
Range of product
Telemecanique Inductive proximity sensors XS
Series name
General purpose
Sensor type
Inductive proximity sensor
Product specific application
Not applicable
Sensor name
XS8
Sensor design
Form 12 x 40 x 26
Size
26 mm
Body type
Fixed
Type of output signal
Discrete
Wiring technique
3-wire
Enclosure material
Plastic
Discrete output function
1 NO
Discrete output type
PNP
Electrical connection
Male connector M8, 3 pins
[Us] rated supply voltage
12...24 V DC
Switching capacity in mA
<= 100 mA with overload and short-circuit protection
IP degree of protection
IP67 conforming to IEC 60529
Detector flush mounting acceptance
Non flush mountable
Material
Plastic
Output circuit type
DC
Detection face
Lateral
Sensing range
> 2.5...4 mm
Front material
Plastic
Differential travel
3...20% of Sr
Repeat accuracy
<= 10% of Sr
Status LED
Output state: 1 LED (yellow)
Switching frequency
<= 1000 Hz
Voltage drop
<1.8 V (closed)
Current consumption
0...10 mA no-load
Delay first up
4 MILLISECOND
Delay response
0.5 MILLISECOND
Marking
CE
Delay recovery
1 MILLISECOND
Product certifications
CSA
UL
UL
Vibration resistance
25 gn amplitude = +/- 2 mm (f = 10-55 Hz) conforming to IEC 60068-2-6
Shock resistance
50 gn for 11 ms conforming to IEC 60068-2-27
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
3.5 CENTIMETER
Package 1 width
4.3 CENTIMETER
Package 1 length
7 CENTIMETER
Package 1 weight
28 GRAM
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
