XCC2514TS81KG
Absolute encoder Ø 58 single turn - through shaft 14 mm - push-pull 13-bit Gray
End of commercialisation Fecha de fin de comercialización : Fecha de fin del servicio :
Expandir todo
Ficha de datos
Range of product
OsiSense XCC
Device short name
XCC
Encoder type
Single turn absolute encoder
Product specific application
Not applicable
Enclosure material
Zamak
Shaft type
Through shaft
Resolution
8192 points
Output stage
Type KG
Type of output stage
Driver push-pull gray
Electrical connection
1 male connector M23 radial 16 pins
IP degree of protection
IP65 conforming to IEC 60529
[Us] rated supply voltage
11...30 V DC
Current consumption
0...100 mA no-load
Protection type
Reverse polarity protection
short-circuit protection
short-circuit protection
Marking
CE
Shaft tolerance
H7
Residual ripple
500 mV
Vibration resistance
10 gn (f= 10-2000 Hz) conforming to IEC 60068-2-6
Maximum load
2 daN axial, 5 daN radial
Shock resistance
30 gn for 11 ms conforming to IEC 60068-2-27
Output level
Low level: 0.5 V maximum 20 mA, high level: V supply - 2.5 V minimum 20 mA
Base material
Aluminium
Shaft material
Stainless steel
Type of ball bearings
6803ZZ
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
8.5 CENTIMETER
Package 1 width
14 CENTIMETER
Package 1 length
27 CENTIMETER
Package 1 weight
435 GRAM
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Expandir todo
Dibujos tecnicos

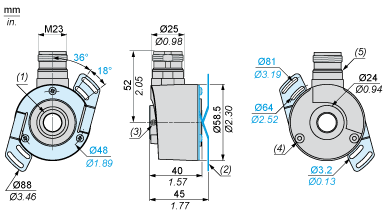

Dimensions
