XSEC107133
Inductive proximity sensors XS, inductive sensor XSE 26x26x45, plastic, Sn10mm, 12...48 VDC, terminals
End of commercialisation Fecha de fin de comercialización : Fecha de fin del servicio :
XSEC107133 is replaced by the following product:

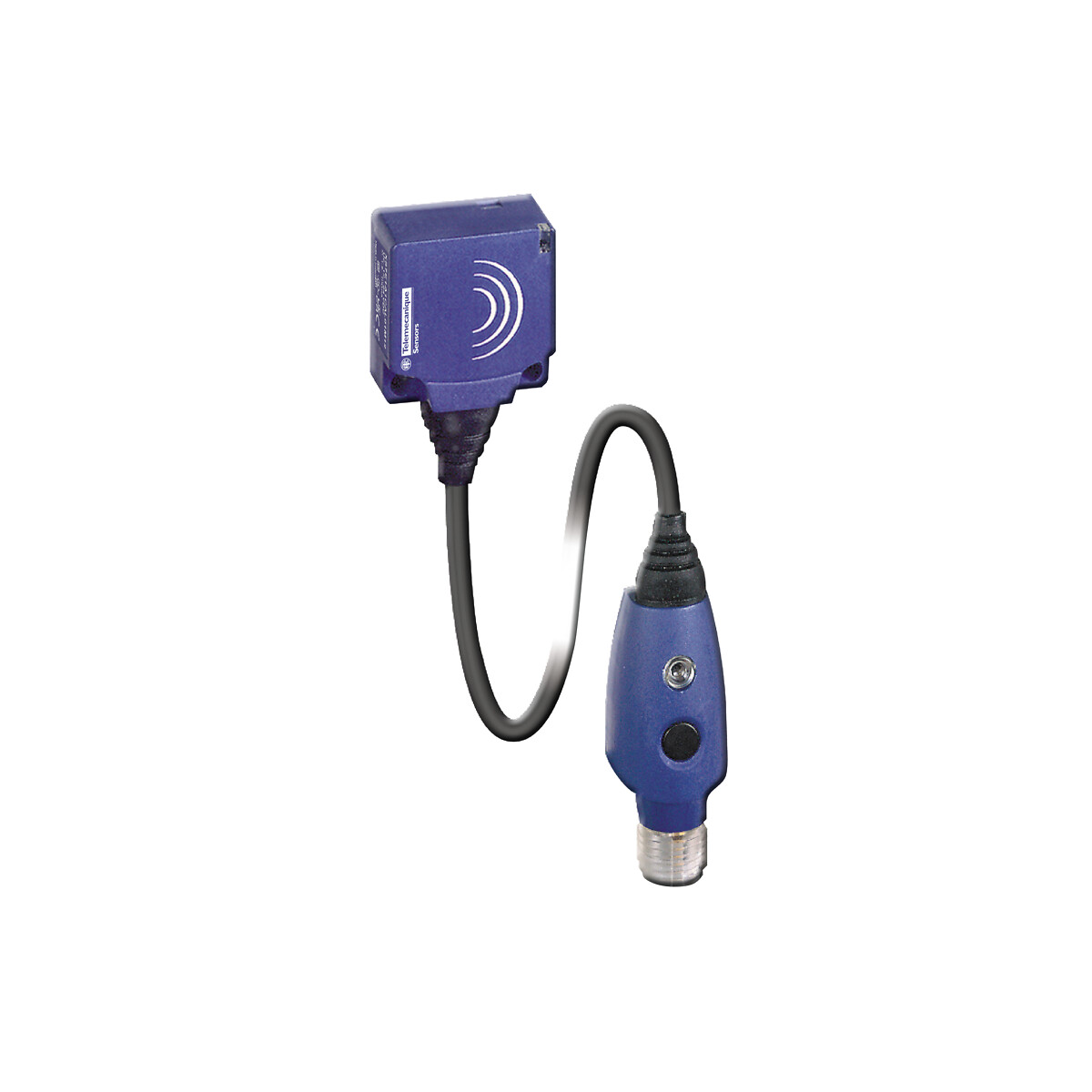

XS7E1A1DAL01M12
Inductive proximity sensors XS, inductive sensor XS7 26x26x13, PBT, Sn10mm, 12...24 VDC, M12 0.15 m
Quantity : 1
Expandir todo
Ficha de datos
Range of product
Telemecanique Inductive proximity sensors XS
Series name
General purpose
Sensor type
Inductive proximity sensor
Product specific application
Not applicable
Sensor name
XSE
Sensor design
Form 26 x 26 x 45
Size
89.5 mm
Body type
Fixed
Type of output signal
Discrete
Wiring technique
2-wire
Enclosure material
Plastic
Discrete output function
1 NO
Electrical connection
Screw-clamp terminals
[Us] rated supply voltage
12...48 V DC
Switching capacity in mA
3...100 mA
IP degree of protection
IP68
Detector flush mounting acceptance
Flush mountable
Material
Plastic
Output circuit type
DC
Cable entry
1 entry tapped for Pg 11 cable gland
Sensing range
8...15 mm
Front material
Plastic
Switching frequency
<= 1000 Hz
Marking
CE
Product certifications
CCC
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
4.1 CENTIMETER
Package 1 width
9.5 CENTIMETER
Package 1 length
13 CENTIMETER
Package 1 weight
110 GRAM
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
