XSPN01122EX
Inductive sensor Namur - M8 - Sn1.5mm - 7..12VDC - cable 2m
End of commercialisation Fecha de fin de comercialización : Fecha de fin del servicio :
Expandir todo
Ficha de datos
Range of product
Telemecanique Inductive proximity sensors XS
Series name
Application
Sensor type
Inductive proximity sensor
Sensor name
XSP
Device application
ATEX dust
Sensor design
Cylindrical M8
Size
8 mm
Body type
Fixed
Type of output signal
Discrete
Wiring technique
2-wire
Discrete output function
1 NC
Detector flush mounting acceptance
Flush mountable
Discrete output type
Namur
Material
Plastic
Electrical connection
Cable
Output circuit type
DC
[Us] rated supply voltage
7...12 V DC
Switching capacity in mA
<= 1 mA
IP degree of protection
IP67 conforming to IEC 60529
Enclosure material
Plastic
Detection face
Frontal
Thread type
M8 x 1
Front material
PPS
Sensing range
> 0...2.5 mm
Cable composition
2 x 0.11 mm²
Residual current
3 mA open state
Wire insulation material
PVC
Switching frequency
<= 1000 Hz
Marking
II1 D-Ex ia IIIC T85°C Da IP66/67
Product certifications
INERIS 04ATEX0016X
Standards
EN/IEC 60079-11
IEC 60079-0
IEC 60079-0
Environmental characteristic
Hazardous location
Directives
94/9/EC - ATEX directive
Dust zone
Zone 20
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
13 CENTIMETER
Package 1 width
4 CENTIMETER
Package 1 length
9.5 CENTIMETER
Package 1 weight
90 GRAM
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Expandir todo
Dibujos tecnicos

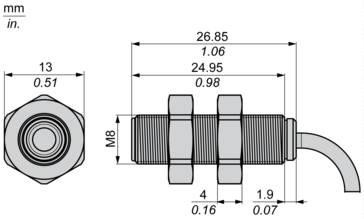

Dimensions
Minimum Mounting Distances
Wiring Schemes
2-Wire Non-polarised
Performance Curves
Standard Steel Target : 8x8x1 mm
