XT7C40FP262
Capacitive proximity sensors XT, 40 x 40 x 117, plastic, Sn 15 mm, 24...240 V AC
End of commercialisation Fecha de fin de comercialización : Fecha de fin del servicio :
Expandir todo
Ficha de datos
Sensor type
Capacitive proximity sensor
Product specific application
Detection of insulated or conductive materials
Sensor name
XT7
Sensor design
Form 40 x 40 x 117
Size
117 mm
Body type
Plug-in body
Detector flush mounting acceptance
Flush mountable
Material
Plastic
Enclosure material
Plastic
Type of output signal
Discrete
Wiring technique
2-wire
Discrete output function
1 NO or 1 NC programmable
Output circuit type
AC
Electrical connection
Screw clamp terminal, 3 x 1.5 mm²
[Us] rated supply voltage
24...240 V AC 50...60 Hz
Delay response
20 MILLISECOND
IP degree of protection
IP67 conforming to IEC 60529
Detection face
5 positions turret head
Cable entry
-
Differential travel
< 0.2 x Sr
Repeat accuracy
< 0.1 x Sr
Status LED
Supply state indication: 1 LED (green), output state indication: 1 LED (yellow)
Residual current
1.5 mA open state
Switching frequency
<= 25 Hz
Voltage drop
<5.5 V (closed)
Delay first up
150 MILLISECOND
Delay recovery
30 MILLISECOND
Marking
CE
Setting-up
Sensitivity by potentiometer
Product certifications
CSA
UL
UL
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
5 CENTIMETER
Package 1 width
5 CENTIMETER
Package 1 length
14.5 CENTIMETER
Package 1 weight
224 GRAM
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Expandir todo
Dibujos tecnicos

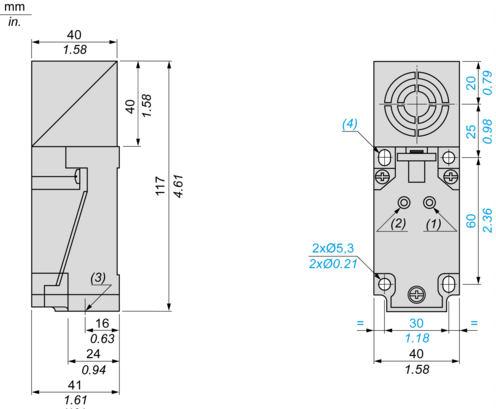

Dimensions
Setting-up
Minimum Mounting Distances (mm)
Minimum Mounting Distances (mm)
Wiring Diagram
