Photoelectric sensors XU, photo electric laser sensor, XUK, BGS, Sn 1 m, 12...24 VDC, cable 2 m
Commercialised
Expandir todo
Ficha de datos
Range of product
Telemecanique Photoelectric sensors XU
Series name
General purpose single mode
Electronic sensor type
Photo-electric sensor
Sensor name
XUK
Sensor design
Compact 50 x 50
Detection system
Diffuse with background suppression
Material
Plastic
Type of output signal
Discrete
Supply circuit type
DC
Wiring technique
3-wire
[Sn] nominal sensing distance
1-1 m diffuse with background suppression
Discrete output type
PNP or NPN
Discrete output function
1 NO or 1 NC programmable
Electrical connection
Cable
Product specific application
Not applicable
Emission
Infrared laser, modulated diffuse with background suppression class 1
Enclosure material
PC
Lens material
PMMA
Output type
Solid state
Add on output
Without, <= 50 mA with overload and short-circuit protection
Cable composition
5 x 0.34 mm²
Status LED
1 LED (green) for supply on, 1 LED (yellow) for output state, 1 LED (red) for alignment assistance
[Us] rated supply voltage
12...24 V DC with reverse polarity protection
Switching capacity in mA
<= 100 mA (overload and short-circuit protection)
Switching frequency
250 Hz
Maximum voltage drop
<1.5 V (closed state)
Current consumption
35 mA no-load
Delay first up
300 MILLISECOND
Delay response
2 MILLISECOND
Delay recovery
2 MILLISECOND
Setting-up
Sensitivity adjustment by potentiometer
Kit composition
With XUZA51 bracket fixing
Vibration resistance
7 gn (f = 10-55 Hz) conforming to IEC 60068-2-6
Shock resistance
10 gn (duration = 11 ms) conforming to IEC 60068-2-27
IP degree of protection
IP65 double insulation conforming to IEC 60529
Unit type of package 1
PCE
Number of units in package 1
1
Unit type of package 2
S02
Number of units in package 2
12
Package 2 height
15 CENTIMETER
Package 2 width
30 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
3.2 KILOGRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Expandir todo
Dibujos tecnicos

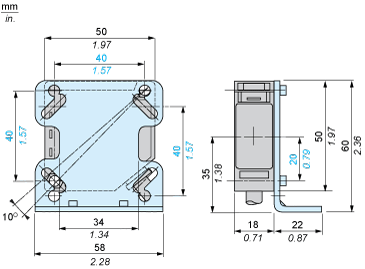

Dimensions
Dimensions
Bracket fixing
- (1) 1 elongated hole Ø 6 x 12
- (2) 1 elongated hole Ø 6 x 13
Wiring Schemes
NO/NC Programming
NO/NC Programming
- BN : Brown
- BU : Blue
- BK : Black
Detection Curves
Variation of Usable Sensing Distance Su
Variation of Usable Sensing Distance Su
- A-B : Object reflection coefficient
- (1) Black 6%
- (2) Grey 18%
- (3) White 90%
- (4) Sensing range
- (5) Non sensing zone (matt surfaces)
Detection Curves
Sensing Distance Adjustment
- A-B : Object reflection coefficient
- (1) Black 6%
- (2) Grey 18%
- (3) White 90%
- (4) Sensing range
- (5) Non sensing zone (matt surfaces)
- 1 : White 90%
- 2 : Grey 18%
- 3 : Black 6%
- (Y) Sensing distance (cm)
- (X) Number of turns on potentiometer
- (Z) Setting indicator position (mm)
Detection Curves
Relative Difference in Sensing Distances According to Object Colour
- A-B : Object reflection coefficient
- (1) Black 6%
- (2) Grey 18%
- (3) White 90%
- (4) Sensing range
- (5) Non sensing zone (matt surfaces)
- 1 : White 90%
- 2 : Grey 18%
- 3 : Black 6%
- (Y) Sensing distance (cm)
- (X) Number of turns on potentiometer
- (Z) Setting indicator position (mm)
- 1 : White 90%
- 2 : Grey 18%
- 3 : Black 6%
