XUMTAPCNM8

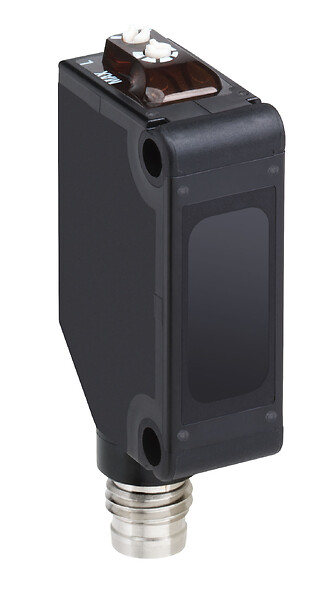

Photoelectric sensors XU, XUM, reflex, Sn 2 m, 12...24 VDC, M8
End of commercialisation Fecha de fin de comercialización : Fecha de fin del servicio :
XUMTAPCNM8 is replaced by the following product:
Quantity : 1
Expandir todo
Ficha de datos
Range of product
Telemecanique Photoelectric sensors XU
Sensor name
XUM
Series name
Application packaging
Product specific application
Detection of transparent object
Enclosure material
PBT
Electronic sensor type
Photo-electric sensor
Sensor design
Miniature
Electrical connection
1 male connector M8, 4 pins
Material
Plastic
Wiring technique
3-wire
Detection system
Reflex
Emission
Infrared reflex
Cable entry
1 entry for M16 x 1.5 cable gland, cable outer diameter: 7-10 mm
Discrete output function
1 NO or 1 NC programmable
[Us] rated supply voltage
12...24 V DC
Type of output signal
Discrete
Supply circuit type
DC
Discrete output type
PNP
Delay response
2 MILLISECOND
Setting-up
Sensitivity adjustment
Current consumption
<= 35 mA no-load
Output type
Solid state
Switching capacity in mA
<= 100 mA (overload and short-circuit protection)
Lens material
PC
Status LED
1 LED (yellow) for output state, 1 LED (green) for supply
Sensing range
> 0...2 m
Maximum voltage drop
<1.5 V (closed state)
Delay first up
15 MILLISECOND
Delay recovery
2 MILLISECOND
Shock resistance
30 gn (duration = 11 ms) conforming to IEC 60068-2-27
IP degree of protection
IP67 double insulation conforming to IEC 60529, IP65 double insulation conforming to IEC 60529
Vibration resistance
7 gn, amplitude = +/- 1.5 mm (f = 10-55 Hz) conforming to IEC 60068-2-6
Unit type of package 1
PCE
Number of units in package 1
1
Unit type of package 2
S01
Number of units in package 2
48
Package 2 height
15 CENTIMETER
Package 2 width
15 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
944 KILOGRAM
Unit type of package 3
P06
Number of units in package 3
1536
Package 3 height
75 CENTIMETER
Package 3 width
40 CENTIMETER
Package 3 length
80 CENTIMETER
Package 3 weight
46.504 KILOGRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Expandir todo
Dibujos tecnicos

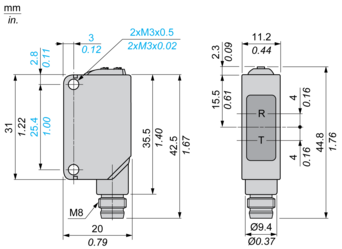

Dimensions
Mounting
Wiring Schemes
M8 Connector
Wiring Schemes
PNP Output
