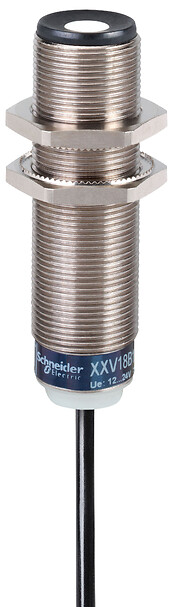

XXV18B1PAL2
Ultrasonic sensors XX, ultrasonic sensor, M18 metal, Sn 50 mm, PNP NO, cable 2 m
Commercialised
Expandir todo
Ficha de datos
Range of product
Telemecanique Ultrasonic sensors XX
Sensor type
Ultrasonic sensor
Series name
General purpose
Sensor name
XXV
Sensor design
Cylindrical M18
Detection system
Diffuse
Material
Metal
Type of output signal
Discrete
Discrete output function
1 NO
Wiring technique
3-wire
[Us] rated supply voltage
12...24 V DC with reverse polarity protection
Discrete output type
PNP
Electrical connection
Cable, 2 m cable length
Enclosure material
Brass
Front material
Epoxy
Thread type
M18 x 1
Voltage drop
2 VOLT
Minimum size of detected object
Cylinder diameter 2 mm at 0.02 m
Delay first up
5 MILLISECOND
Current consumption
15 mA
Status LED
Output state: 1 LED (yellow)
Switching frequency
<= 80 Hz
Delay response
4 MILLISECOND
Delay recovery
4 MILLISECOND
IP degree of protection
IP67 conforming to IEC 60529
Marking
CE
Standards
IEC 60947-5-2
Product certifications
cULus
Vibration resistance
+/- 2 mm conforming to IEC 60068-2-6 (f = 10-55 Hz)
Shock resistance
50 gn in all 3 axes for 11 ms conforming to IEC 60068-2-27
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
4.064 CENTIMETER
Package 1 width
9.398 CENTIMETER
Package 1 length
13.208 CENTIMETER
Package 1 weight
127.006 GRAM
For all Reach Rohs enquiries contact us at
Expandir todo
Dibujos tecnicos
Dimensions
Minimum Mounting Distances
- e(1) > 25 mm
- e(2) > 700 mm
- e(3) > 60 mm
Wiring Diagram
- BN Brown
- BU Blue
- BK Black
Curves
Square Object
- (1) Parallel movement
- (2) Distance
- (3) Blind zone for diffuse sensors.
Curves
Cylindrical Object
- (1) Parallel movement
- (2) Distance
- (3) Blind zone for diffuse sensors.
- (1) Parallel movement
- (2) Distance
- (3) Blind zone for diffuse sensors.
Expandir todo
Documentos y Descargas
Nombre del documento
Fecha
Tamaño
2/7/2024
18921683
Nombre del documento
Fecha
Tamaño
6/30/2020
736999
Nombre del documento
Fecha
Tamaño
7/18/2024
12998
7/18/2024
136553
7/18/2024
19033
7/18/2024
201175
7/18/2024
30675
7/18/2024
34294
7/18/2024
34522
7/18/2024
35737
7/18/2024
37623
7/18/2024
53567
7/18/2024
59915
7/18/2024
70343
7/18/2024
72205
7/18/2024
76486
7/18/2024
80450
Expandir todo
Related products & accessoires
XSZB118
Inductive proximity sensors XS, accessory for sensor, Ø 18 mm, fixing clamp, plastic, with indexing
XUZ2001
Photoelectric sensors XU, accessory for sensor, 3D fixing kit, M12 rod
XUZ2003
Photoelectric sensors XU, accessory for sensor, 3D fixing kit, support for M12 rod
XUZA118
90° fixing bracket, Photoelectric sensors XU, accessory for sensor, Ø 18 mm, stainless steel
XUZB2003
Photoelectric sensors XU, accessory for sensor, 3D fixing kit, bracket with ball joint, Ø 18 mm

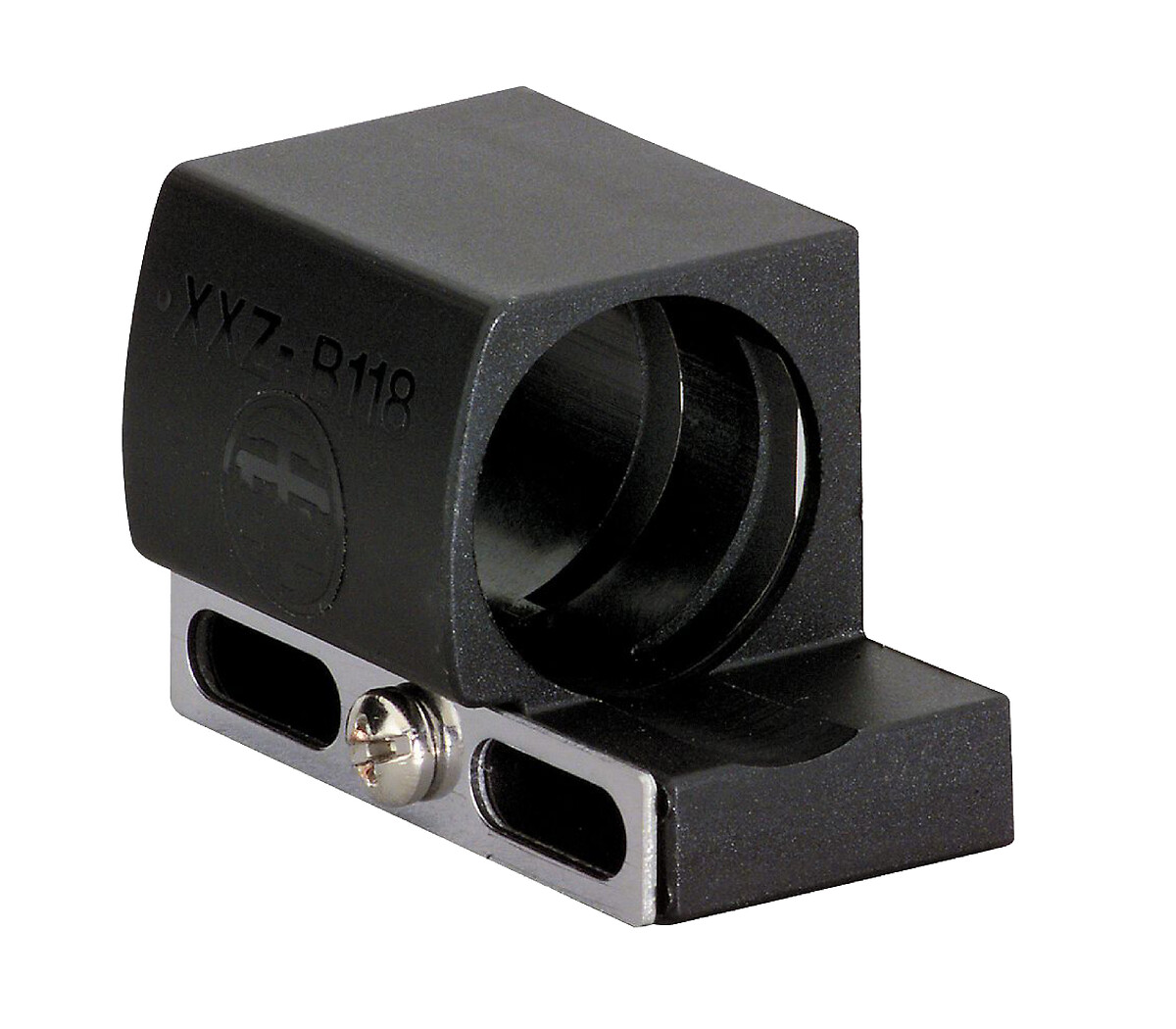

XXZB118
