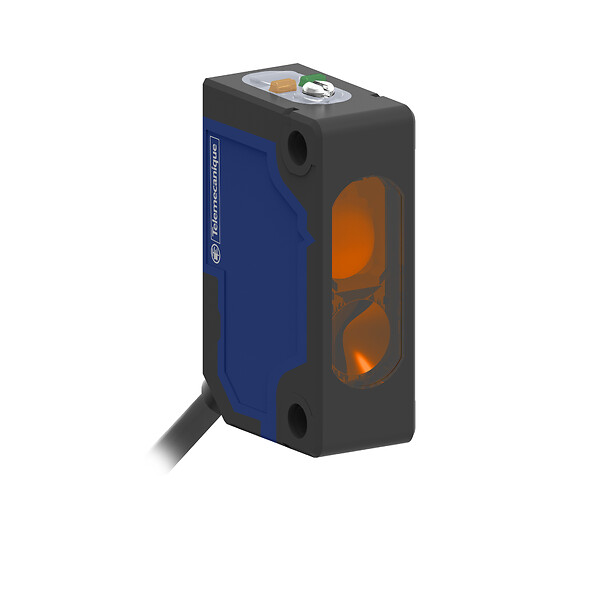

XUM5APXBL2
Photoelectric sensors XU, miniature, diffuse long, Smax=1.9 m, PNP, cable 2 m
Commercialised
Déplier tout
Fiche technique
Range of product
Telemecanique Photoelectric sensors XU
Series name
General purpose single mode
Electronic sensor type
Photo-electric sensor
Sensor name
XUM
Sensor design
Miniature
Detection system
Diffuse
Material
Plastic
Type of output signal
Discrete
Supply circuit type
DC
Wiring technique
3-wire
Discrete output type
PNP
Discrete output function
1 NO or 1 NC programmable
Electrical connection
Cable
Emission
-
Enclosure material
PBT
Lens material
PMMA
Status LED
-
Output type
Solid state
Wire insulation material
PVC
[Us] rated supply voltage
12...24 V DC with reverse polarity protection
Switching capacity in mA
<= 100 mA with overload and short-circuit protection
Switching frequency
1000 Hz
Maximum voltage drop
<2 V
Current consumption
20 mA no-load
Delay first up
100 MILLISECOND
Delay response
0.5 MILLISECOND
Delay recovery
0.5 MILLISECOND
Setting-up
Sensitivity by potentiometer
Product certifications
CE
UKCA
cULus
UKCA
cULus
Vibration resistance
9 gn, amplitude = +/- 1.5 mm (f = 10-500 Hz)for every axis conforming to IEC 60068-2-6
Shock resistance
100 gn (duration = 11 ms) for for every axis conforming to IEC 60068-2-27
IP degree of protection
IP67 conforming to IEC 60529, IP65 conforming to IEC 60529
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
2 CENTIMETER
Package 1 width
10 CENTIMETER
Package 1 length
10 CENTIMETER
Package 1 weight
51 GRAM
Unit type of package 2
S04
Number of units in package 2
160
Package 2 height
30 CENTIMETER
Package 2 width
40 CENTIMETER
Package 2 length
60 CENTIMETER
Package 2 weight
9.895 KILOGRAM
For all Reach Rohs enquiries contact us at
Déplier tout
Schéma technique

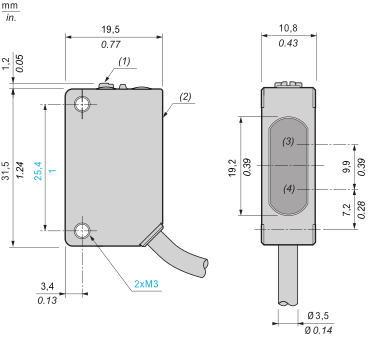

Dimensions
Dimensions
Connection and schema
Connection and schema
Wiring diagram
Detection curves
Detection curves

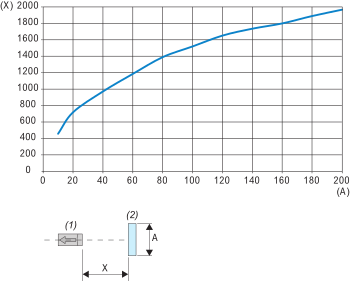

Object size/sensing distance
Detection curves

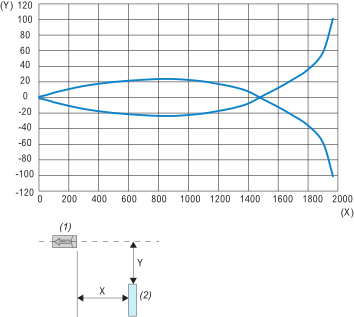

Lateral displacement
Detection curves
Excess gain
Déplier tout
Documents et téléchargements
Document name
Date
Taille
2025-01-02
271433228
2024-02-07
4778347
2024-02-07
4923197
Document name
Date
Taille
2021-05-19
1174419
2021-08-16
1153355
Document name
Date
Taille
3/25/2021
36136
Document name
Date
Taille
2025-04-11
42497232
Document name
Date
Taille
2023-03-01
2761086
Déplier tout
Related products & accessoires

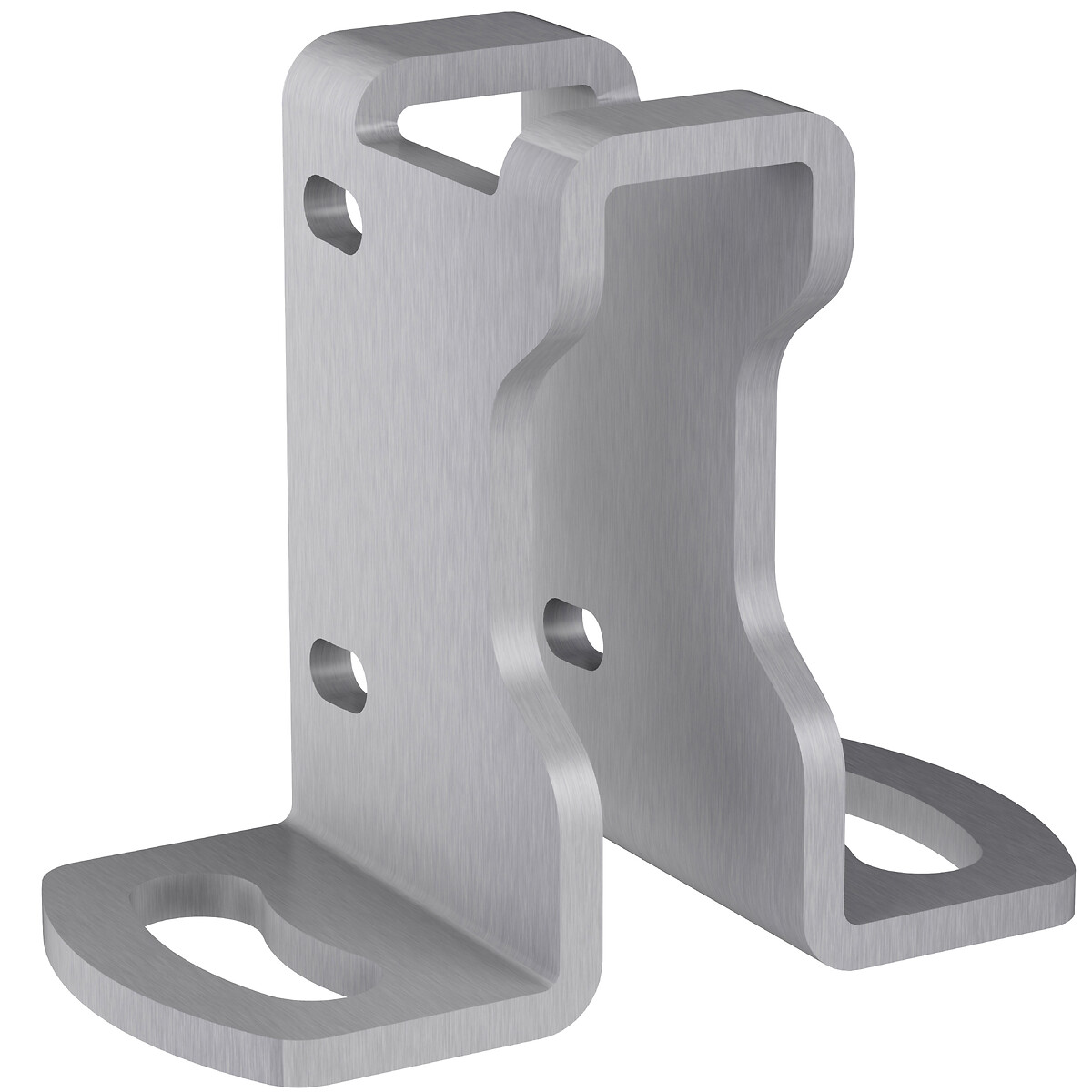

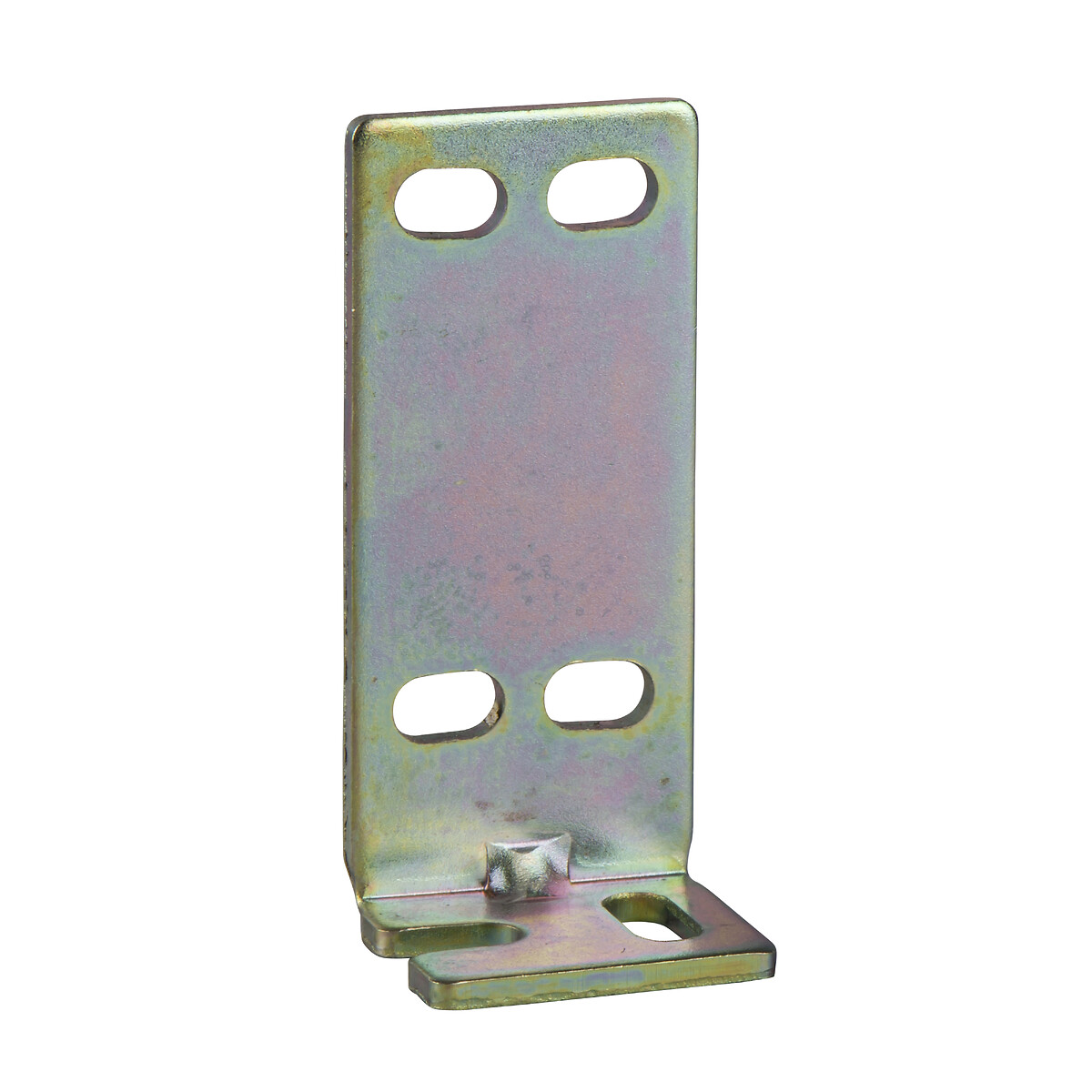

XUZA50
Fixing bracket, Photoelectric sensors XU, accessory for sensor, XUM, metal

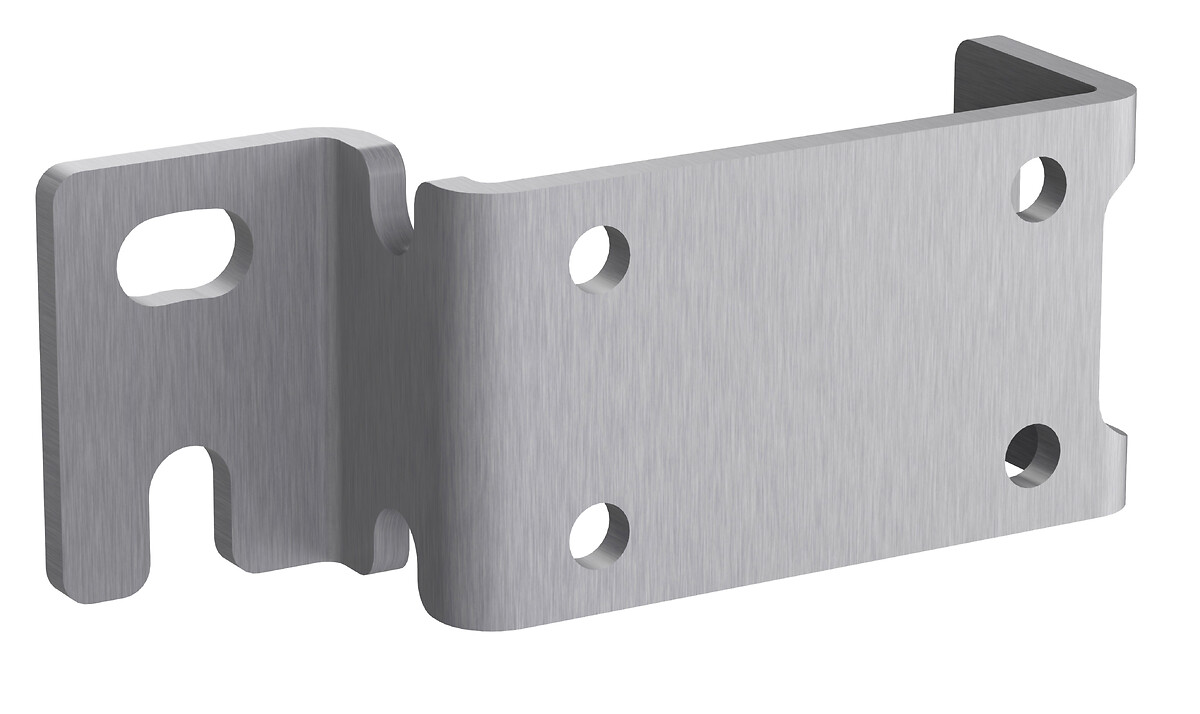

XUZASM02
