9038DG9

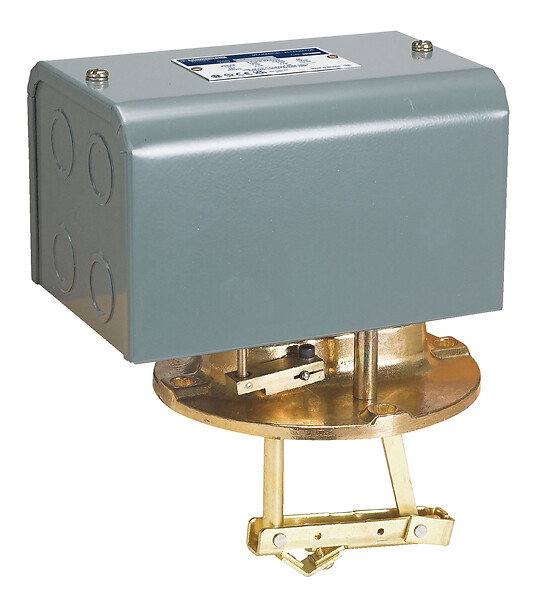

Mechanical alternator, Pumptrol, mech closed tank, NEMA 1, flange top mounted, 4 NC DPST DB contacts
Commercialised
Expand all
Datasheet
Range of product
Pumptrol
Product or component type
Mechanical alternator
Device application
Top mounted closed tank
Device short name
9038D
Product specific application
Liquid level control
Electrical circuit type
Power circuit
Quantity per set
Set of 1
Type of packing
Individual
Product destination
For open tank or sump
Device mounting
Flange
Contacts type and composition
4 NC, snap action, DPST-DB, Form YY
Controlled fluid
Fresh water at specific gravity of 0.85 in or higher 0-220 °F, sea water at specific gravity of 0.85 in or higher 0-220 °F, hydraulic oil at specific gravity of 0.85 in or higher 0-220 °F, corrosive fluid at specific gravity of 0.85 in or higher 0-220 °F
Electrical connection
Screw-clamp terminals, clamping capacity: 10 AWG
Contact operation
Contacts close on liquid rise
Float movement
Variable fixed
Float position
Any
Float rod angle
Horizontal
Local signalling
Without
Materials in contact with fluid
Stainlesss steel 304
stainless steel 316
nitrile (Buna-N) or equivalent rubber
yellow brass
stainless steel 316
nitrile (Buna-N) or equivalent rubber
yellow brass
Enclosure material
Painted cold-rolled steel
Operating position
Vertical position only
Terminal block type
8 terminals
Operating rate
60 CYCLE_PER_MINUTE
Terminals description ISO n°1
Line-load-load-line
Factory modification
Without
Kit composition
Float switch
rod and float are to be choosen in accessories
rod and float are to be choosen in accessories
Standards
CE
UL 508
UL 508
NEMA degree of protection
NEMA 1 conforming to UL 50
Product certifications
CSA
UL listed
UL listed
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
29.871 CENTIMETER
Package 1 width
11.76 CENTIMETER
Package 1 length
75.872 CENTIMETER
Package 1 weight
4.191 KILOGRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
