LCO1

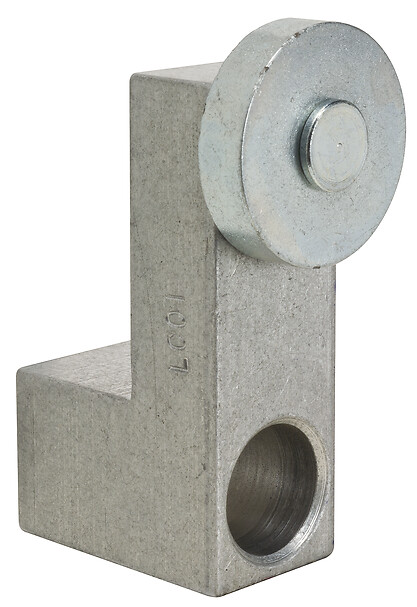

LIMIT SWITCH LEVER ARM TYPE L +OPTIONS
End of commercialisation End of commercialization date : End of service date :
Expand all
Datasheet
Range of product
L100/300
Series name
Severe duty
Product or component type
Limit switch lever
Device short name
L100/300
Movement of operating head
Rotary
Type of operator
Aluminium spring return 360° adjustable roller lever length: 2.5-2.5 in - offset: - to pass over switch cover
Type of roller
1 steel outside roller diameter: 0.75 in - width: 0.25 in
Type of approach
Lateral approach
Positive opening
Without
Switch actuation
By 30° cam
Environmental characteristic
Standard environment
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
6.452 CENTIMETER
Package 1 width
2.54 CENTIMETER
Package 1 length
16.387 CENTIMETER
Package 1 weight
45.359 GRAM
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
