XCSDM4801M12

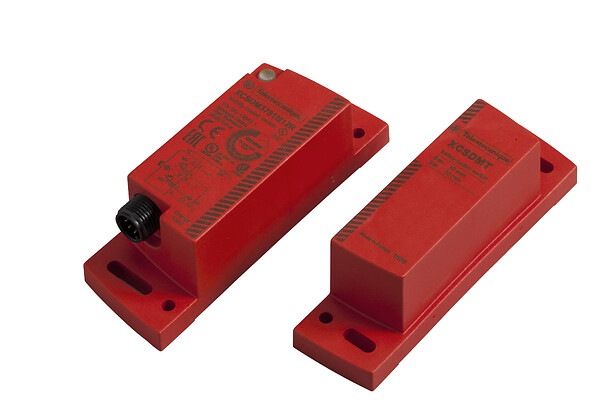

Coded magnetic system, Telemecanique Safety switches XCS, XCSDM4, SIL 3, 2 PNP outputs, connector
End of commercialisation End of commercialization date : End of service date :
Expand all
Datasheet
Range of product
Telemecanique Safety switches XCS
Product or component type
Coded magnetic system
Component name
XCSDM4
Design
Rectangular
Size
100 x 34 x 32 mm
Contacts type and composition
1 NO + 1 NO
Material
Plastic
Electrical connection
Connector
Connector type
M12
Local signalling
Green, orange and red 1 LED
Approach directions
9 directions
[Ue] rated operational voltage
24 V DC (- 20...10 %)
Type of output stage
Solid-state, PNP
Safety outputs
2 outputs 1.5 A, 24 V, DC
Alarm output
1 solid-state output, 0.5 A, 24 V, DC, PNP
Protection type
Overload and short-circuit protection
Switching frequency
3 Hz
Time delay
100 ms activation
Tightening torque
< 1.8 N.m
Installed device
32 maximum with 2 m long cable
Marking
CE
Safety level
Category 4 correctly wired conforming to ISO 13849-1, PL = e correctly wired conforming to ISO 13849-1, SIL 3 correctly wired conforming to IEC 61508
Safety reliability data
HFT = 1, MTTFd = 182 years, PFD = 1.15E-5, PFH = 3.94E-9, SF = 92.5 %
Enclosure material
Thermoplastic PBT
Standards
EN 13849-1
IEC 60947-5-1
IEC 60947-5-2
IEC 60947-5-3
IEC 61508
IEC 62061
ISO 14119
IEC 60947-5-1
IEC 60947-5-2
IEC 60947-5-3
IEC 61508
IEC 62061
ISO 14119
Product certifications
CSA
TÜV
UL
TÜV
UL
Vibration resistance
10 gn (f= 10-500 Hz) conforming to IEC 60068-2-6
Shock resistance
30 gn for 11 ms conforming to IEC 60068-2-27
Sensitivity to magnetic fields
0.5 MILLITESLA
Electrical shock protection class
Class III conforming to IEC 61140
IP degree of protection
IP67 conforming to IEC 60529
Unit type of package 1
PCE
Number of units in package 1
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
