XS1L04PA311S

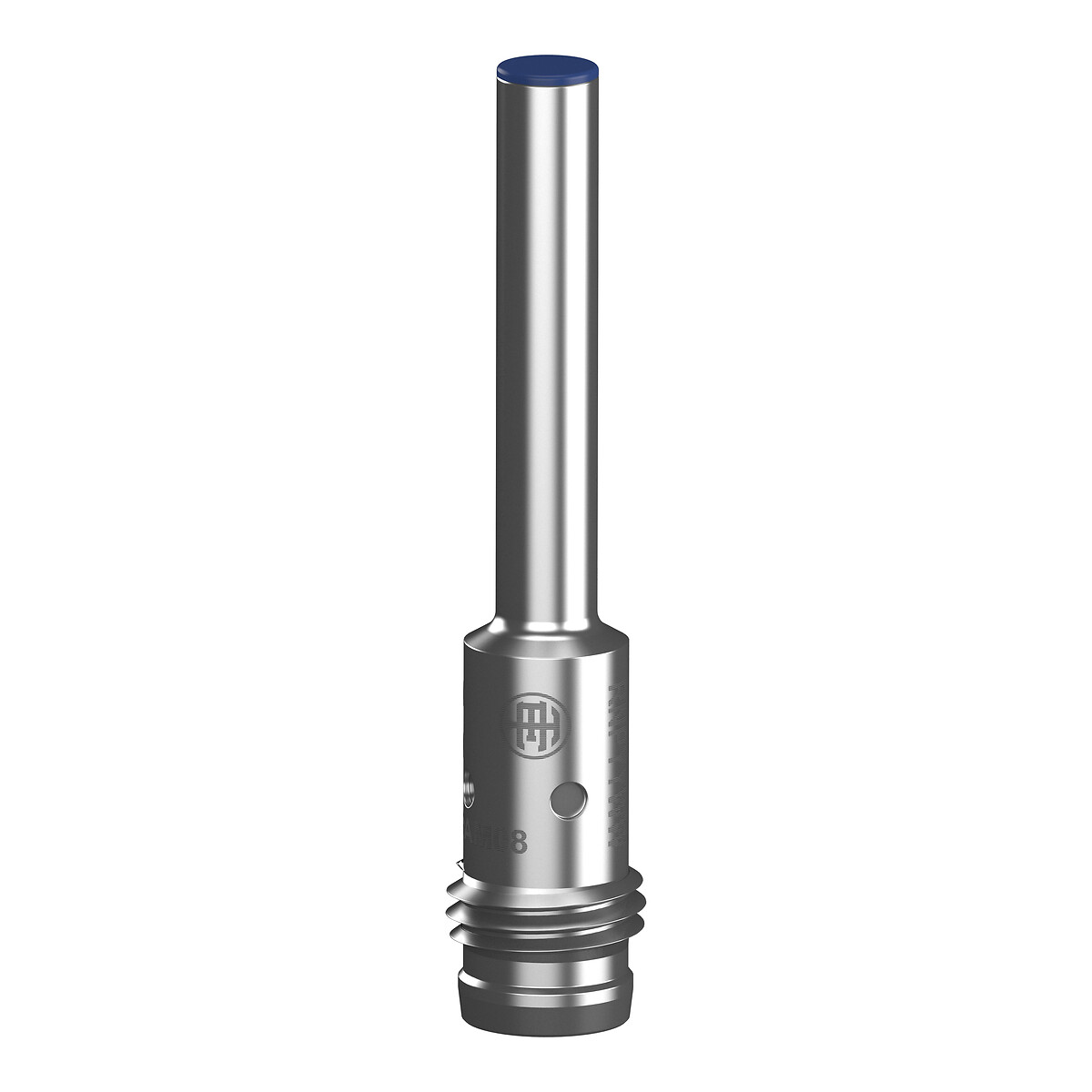

Inductive proximity sensors XS, inductive sensor XS1 Ø4, L42mm, stainless, Sn0.8mm, 5..24VDC, M8

End of commercialisation Data di fine commercializzazione : Data di fine service :

Scarica il datasheet in pdf Scarica il file 3d Trova un distributore

XS1L04PA311S is replaced by the following product:

XS504R1PAM08

Miniature inductive sensor, D4 plain, L39mm, stainless, Sn0.8mm, M8 connector

Quantity :  1

Espandi selezione

Datasheet

Range of product
Telemecanique Inductive proximity sensors XS
Series name
General purpose
Sensor type
Inductive proximity sensor
Sensor name
XS1
Device application
Not applicable
Sensor design
Cylindrical Ø 4 mm plain
Size
42 mm
Body type
Fixed
Type of output signal
Discrete
Wiring technique
3-wire
Discrete output function
1 NO
Detector flush mounting acceptance
Flush mountable
Discrete output type
PNP
Material
Stainless steel
Electrical connection
Male connector M8, 3 pins
[Us] rated supply voltage
5...24 V DC
Output circuit type
DC
Switching capacity in mA
<= 100 mA with overload and short-circuit protection
IP degree of protection
IP67 conforming to IEC 60529
Enclosure material
Stainless steel 303
Detection face
Frontal
Front material
PPS
Sensing range
> 0...2.5 mm
Status LED
Output state: 1 LED (yellow)
Switching frequency
<= 5000 Hz
Voltage drop
<2 V (closed)
Current consumption
<= 10 mA no-load
Delay first up
5 MILLISECOND
Delay response
1 MILLISECOND
Marking
CE
Delay recovery
1 MILLISECOND
Product certifications
CSA
UL
Vibration resistance
25 gn amplitude = +/- 2 mm (f = 10-55 Hz) conforming to IEC 60068-2-6
Shock resistance
50 gn for 11 ms conforming to IEC 60068-2-27
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
4.5 CENTIMETER
Package 1 width
6.5 CENTIMETER
Package 1 length
9.5 CENTIMETER
Package 1 weight
21 GRAM
Unit type of package 2
S01
Number of units in package 2
20
Package 2 height
15 CENTIMETER
Package 2 width
15 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
645 GRAM
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Espandi selezione

Disegni tecnici

Dimensions

epds
  • (1) LED

Minimum Mounting Distances in mm

epds
  • e (1) ≥ 2 mm/0.79 in.
epds
  • e (1) ≥ 2 mm/0.79 in.
  • e (2) ≥ 12 mm/0.47 in.
epds
  • e (1) ≥ 2 mm/0.79 in.
  • e (2) ≥ 12 mm/0.47 in.
  • e (3) ≥ 3 mm/0.12 in.
epds
  • e (1) ≥ 2 mm/0.79 in.
  • e (2) ≥ 12 mm/0.47 in.
  • e (3) ≥ 3 mm/0.12 in.
  • d ≥ 4 mm/0.16 in.
  • h ≥ 0 mm/0 in.

Wiring Schemes

epds
epds

Performance Curves

Standard Steel Target (mm) : 5x5x1

epds
  • Pick-up points
  • Drop-out points (object approaching from the side)
  • (y) Sensing distance in mm

Espandi selezione

Prodotti & accessori

XZCP0566L5

Pre wired connectors XZ, straight female, M8, 3 pins, cable PUR 5 m

XZCP0666L5

Pre wired connectors XZ, elbowed female, M8, 3 pins, cable PUR 5 m
