XSEC1071330

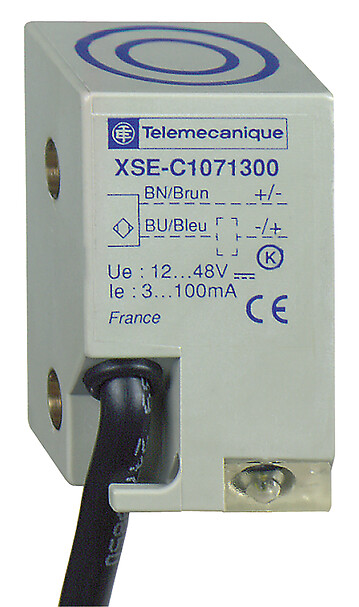

Inductive sensor XSE 26x26x45 - plastic - Sn10mm - 12..48VDC - cable 2m
End of commercialisation Data di fine commercializzazione : Data di fine service :
Espandi selezione
Datasheet
Range of product
Telemecanique Inductive proximity sensors XS
Series name
General purpose
Sensor type
Inductive proximity sensor
Product specific application
Not applicable
Sensor name
XSE
Sensor design
Form 26 x 26 x 45
Size
45 mm
Body type
Fixed
Type of output signal
Discrete
Wiring technique
2-wire
Enclosure material
Plastic
Discrete output function
1 NO
Electrical connection
Cable
[Us] rated supply voltage
12...48 V DC
Switching capacity in mA
3...100 mA
IP degree of protection
IP67
Detector flush mounting acceptance
Flush mountable
Material
Plastic
Output circuit type
DC
Sensing range
8...15 mm
Front material
Plastic
Wire insulation material
PvR
Cable composition
2 x 0.5 mm²
Switching frequency
<= 1000 Hz
Marking
CE
Product certifications
CCC
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
4.5 CENTIMETER
Package 1 width
8.2 CENTIMETER
Package 1 length
13.3 CENTIMETER
Package 1 weight
148 GRAM
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
