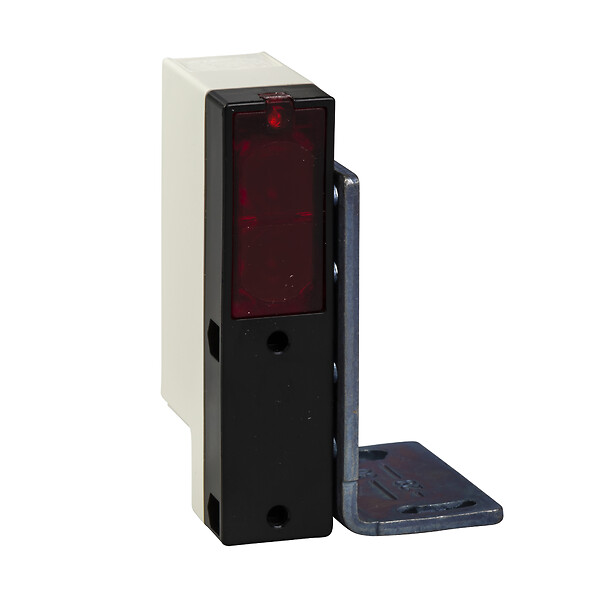

XULH043539
Photoelectric sensors XU, XUL, polarised, Sn 4 m, 12...24 VDC, cable 2 m
End of commercialisation Data di fine commercializzazione : Data di fine service :
XULH043539 is replaced by the following product:
Quantity : 1
XUZASK003
Fixing bracket, Photoelectric sensors XU, accessory for sensor, XUK, metal, for XUL substitution
Quantity : 1
Espandi selezione
Datasheet
Range of product
Telemecanique Photoelectric sensors XU
Series name
General purpose single mode
Electronic sensor type
Photo-electric sensor
Sensor name
XUL
Sensor design
Compact
Detection system
Polarised reflex
Material
Plastic
Type of output signal
Discrete
Wiring technique
3-wire
Supply circuit type
DC
Discrete output type
PNP
Discrete output function
1 NO or 1 NC programmable
Electrical connection
Cable
Product specific application
Not applicable
Emission
Red polarised reflex
Enclosure material
ABS
Lens material
PMMA
Output type
Solid state
Add on output
Without
Cable composition
4 x 0.34 mm²
[Us] rated supply voltage
12...24 V DC with reverse polarity protection
Status LED
1 LED for output state
Switching capacity in mA
<= 100 mA (overload and short-circuit protection)
Current consumption
<= 35 mA no-load
Maximum voltage drop
<1.5 V (closed state)
Delay first up
15 MILLISECOND
Delay response
2 MILLISECOND
Setting-up
Without sensitivity adjustment
Delay recovery
2 MILLISECOND
Kit composition
Bracket XULZ41
sensor
sensor
Vibration resistance
7 gn, amplitude = +/- 2 mm (f = 10-55 Hz) conforming to IEC 60068-2-6
IP degree of protection
IP67 conforming to IEC 60529, IP671 conforming to NF C 20-010
Shock resistance
20 gn (duration = 11 ms) conforming to IEC 60068-2-27
Package 1 height
2.8 CENTIMETER
Package 1 width
24.4 CENTIMETER
Package 1 length
9.2 CENTIMETER
Package 1 weight
212 GRAM
Unit type of package 1
PCE
Number of units in package 1
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
