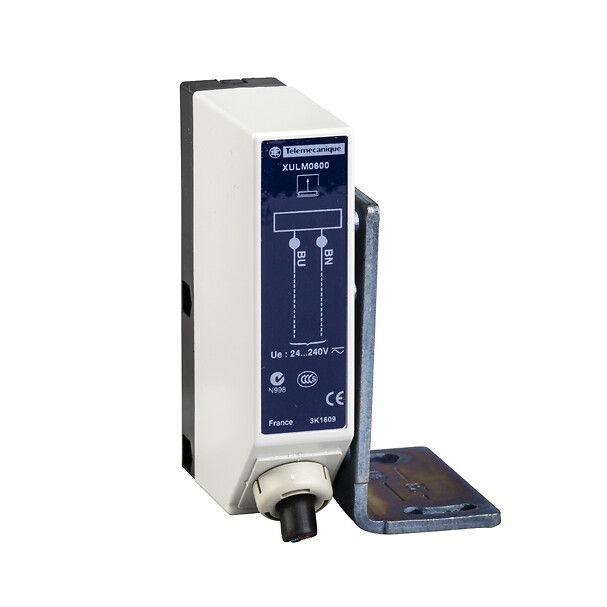

XULM0600
Photo-electric sensor - XUL - emitter - 24..240VAC/DC - cable 2m
End of commercialisation Data di fine commercializzazione : Data di fine service :
XULM0600 is replaced by the following product:
Quantity : 1
Espandi selezione
Datasheet
Range of product
Telemecanique Photoelectric sensors XU
Series name
General purpose single mode
Electronic sensor type
Photo-electric sensor transmitter
Sensor name
XUL
Sensor design
Compact
Detection system
Thru beam
Material
Plastic
Wiring technique
2-wire
Supply circuit type
AC/DC
Emission
-
Electrical connection
Cable
Enclosure material
ABS
Lens material
PMMA
Cable composition
2 x 0.34 mm²
[Us] rated supply voltage
24...240 V AC/DC
Switching capacity in mA
0.5 A
Current consumption
<= 5 mA
Delay first up
60 MILLISECOND
Setting-up
Without sensitivity adjustment
Vibration resistance
7 gn, amplitude = +/- 2 mm (f = 10-55 Hz) conforming to IEC 60068-2-6
IP degree of protection
IP67 conforming to IEC 60529, IP671 conforming to NF C 20-010
Shock resistance
20 gn (duration = 11 ms) conforming to IEC 60068-2-27
Unit type of package 1
PCE
Number of units in package 1
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. Fo more information go to www.P65Warnings.ca.gov
