9037HG34

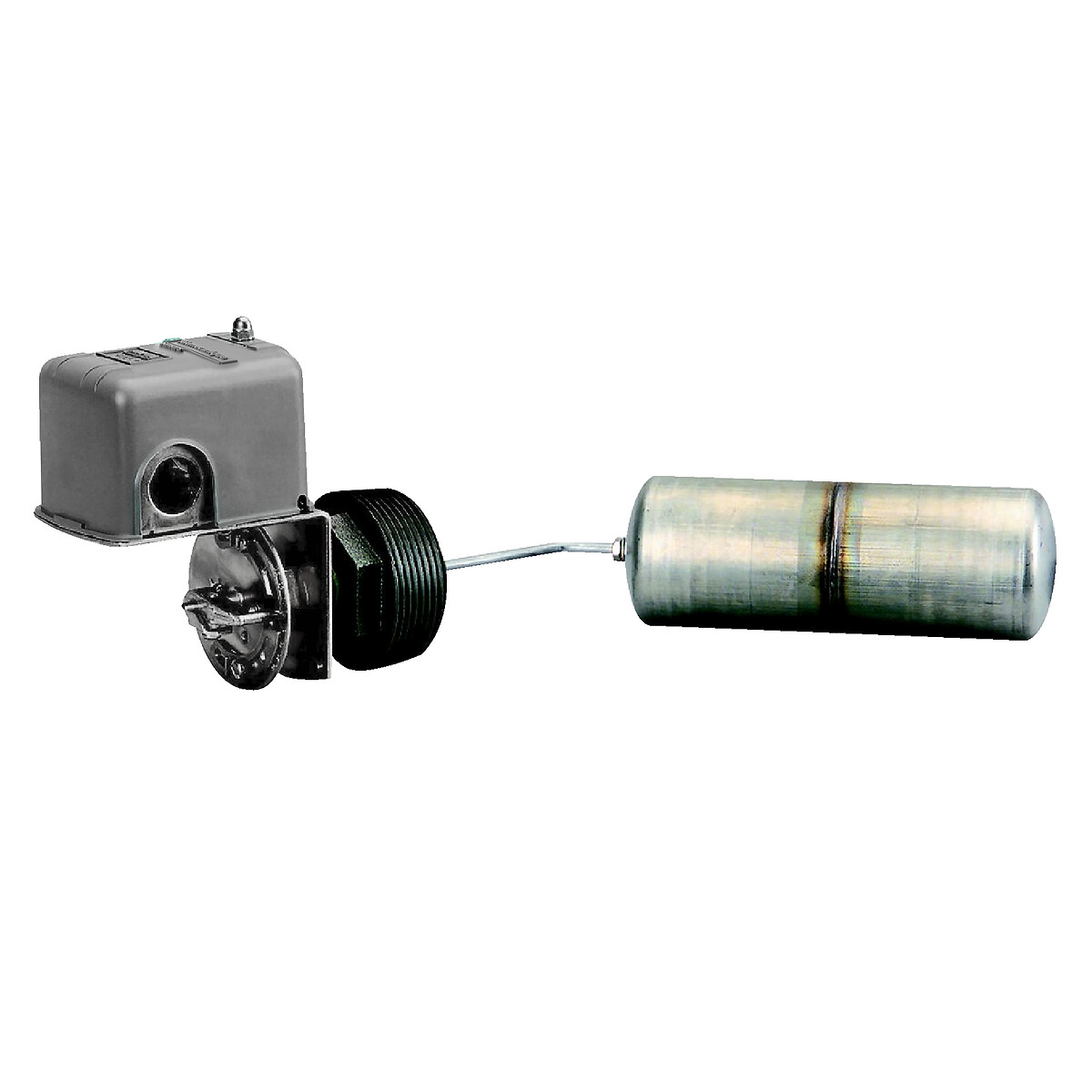

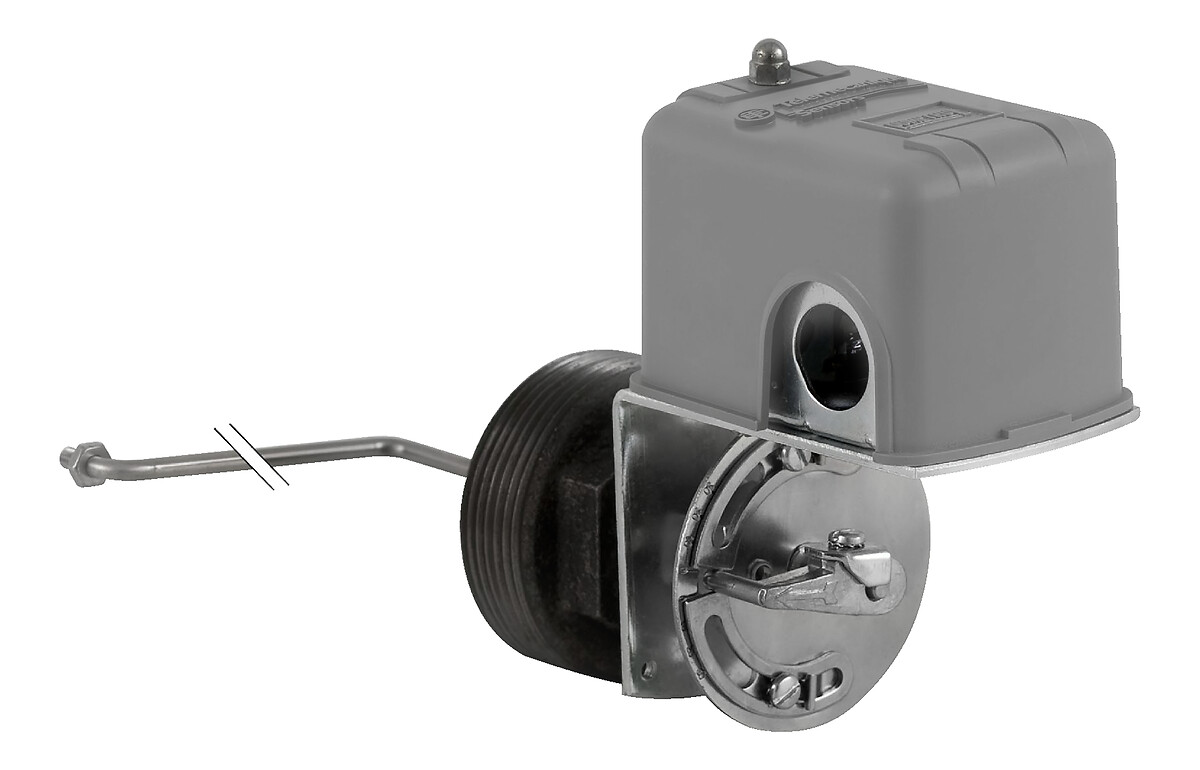

Float switch, Pumptrol, closed tank, NEMA 1, screw in bushing, 2 NC DPST DB contacts
Commercialised
Expandir todo
Ficha de datos
Range of product
Pumptrol
Product or component type
Float switch
Device application
Closed tank
Device short name
9037H
Product specific application
Liquid level control
Electrical circuit type
Power circuit
Quantity per set
Set of 1
Type of packing
Individual
Product destination
For closed tank
Device mounting
Screw-in bushing
Contacts type and composition
2 NC, snap action, DPST-DB, Form YY
Controlled fluid
Fresh water at specific gravity of 0.85 in or higher 0-220 °F, sea water at specific gravity of 0.85 in or higher 0-220 °F, hydraulic oil at specific gravity of 0.85 in or higher 0-220 °F, corrosive fluid at specific gravity of 0.85 in or higher 0-220 °F
Electrical connection
Screw-clamp terminals, clamping capacity: 10 AWG
Contact operation
Contacts close on liquid rise
Float movement
2...5 in adjustable
Float position
Left
Float rod angle
45°
Local signalling
With external pointer
Materials in contact with fluid
Stainlesss steel 304
stainless steel 316
cast iron
nitrile (Buna-N) or equivalent rubber
yellow brass
stainless steel 316
cast iron
nitrile (Buna-N) or equivalent rubber
yellow brass
Enclosure material
Polypropylene or equivalent
Operating position
Vertical position only
Terminal block type
4 terminals
Operating rate
60 CYCLE_PER_MINUTE
Terminals description ISO n°1
Line-load-load-line
Factory modification
Without
Kit composition
Float
float switch
rod
float switch
rod
Standards
CE
UL 508
UL 508
NEMA degree of protection
NEMA 1 conforming to UL 50
Product certifications
CSA
UL listed
UL listed
Unit type of package 1
PCE
Number of units in package 1
1
Unit type of package 2
PAL
Number of units in package 2
60
Package 2 height
101.6 CENTIMETER
Package 2 width
101.6 CENTIMETER
Package 1 height
46.387 CENTIMETER
Package 2 length
121.92 CENTIMETER
Package 1 width
18.263 CENTIMETER
Package 2 weight
120.764 KILOGRAM
Package 1 length
117.823 CENTIMETER
Package 1 weight
2.005 KILOGRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
