XUM8APCNM8

Photoelectric sensors XU, XUM, BGS, Sn 0.3 m, 12...24 VDC, M8

End of commercialisation Fecha de fin de comercialización : Fecha de fin del servicio :

Descargar hoja de datos en pdf Descargar archivo CAD 3D Encontrar un distribuidor

XUM8APCNM8 is replaced by the following product:

XUM8APXBM8

Photoelectric sensors XU, miniature, background suppression, Smax=0.30 m, PNP, connector M8

Quantity :  1

Expandir todo

Ficha de datos

Range of product
Telemecanique Photoelectric sensors XU
Series name
General purpose single mode
Electronic sensor type
Photo-electric sensor
Sensor name
XUM
Sensor design
Miniature
Detection system
Diffuse with background suppression
Material
Plastic
Type of output signal
Discrete
Supply circuit type
DC
Wiring technique
3-wire
[Sn] nominal sensing distance
0.3-0.3 m diffuse with background suppression
Discrete output type
PNP
Discrete output function
1 NO or 1 NC programmable
Electrical connection
1 male connector M8, 4 pins
Product specific application
Not applicable
Emission
Red diffuse with background suppression
Enclosure material
PBT
Lens material
PC
Output type
Solid state
Status LED
1 LED (yellow) for output state, 1 LED (red) for instability
[Us] rated supply voltage
12...24 V DC
Switching capacity in mA
<= 100 mA (overload and short-circuit protection)
Switching frequency
500 Hz
Maximum voltage drop
<1.5 V (closed state)
Current consumption
35 mA no-load
Delay first up
30 MILLISECOND
Delay response
1 MILLISECOND
Delay recovery
1 MILLISECOND
Setting-up
Without sensitivity adjustment
Vibration resistance
7 gn, amplitude = +/- 1.5 mm (f = 10-55 Hz) conforming to IEC 60068-2-6
Shock resistance
30 gn (duration = 11 ms) conforming to IEC 60068-2-27
IP degree of protection
IP67 double insulation conforming to IEC 60529, IP65 double insulation conforming to IEC 60529
Unit type of package 1
PCE
Number of units in package 1
1
Unit type of package 2
S01
Number of units in package 2
48
Package 2 height
15 CENTIMETER
Package 2 width
15 CENTIMETER
Package 2 length
60 CENTIMETER
Package 2 weight
946 KILOGRAM
Unit type of package 3
P06
Number of units in package 3
1536
Package 3 height
75 CENTIMETER
Package 3 width
60 CENTIMETER
Package 3 length
80 CENTIMETER
Package 3 weight
56 KILOGRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Expandir todo

Dibujos tecnicos

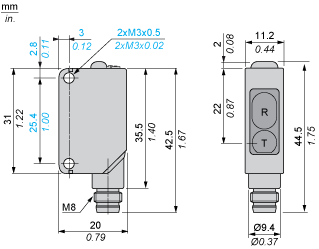

Dimensions

epds
  • R : Reception
  • T : Transmission

Mounting

epds

Wiring Schemes

M8 Connector

epds
  • 1 : (+)
  • 2 : Mode/Input
  • 3 : (-)
  • 4 : Output

Wiring Schemes

PNP Output

epds
  • 1 : (+)
  • 2 : Mode/Input
  • 3 : (-)
  • 4 : Output
  • BU : Blue
  • BN : Brown
  • BK : Black
  • PK : Pink
  • Note : This scheme is represented in "background suppression" mode, cabling of pink (PK) wire to 0 V

Detection Curves

Variation of Usable Sensing Distance

epds

Variation of Usable Sensing Distance

epds
  • A-B : Object reflection coefficient
  • (1) Black 6%
  • (2) Grey 18%
  • (3) White 90%
  • (4) Sensing range
  • (5) Non sensing zone (matt surfaces)
