SM600A64800

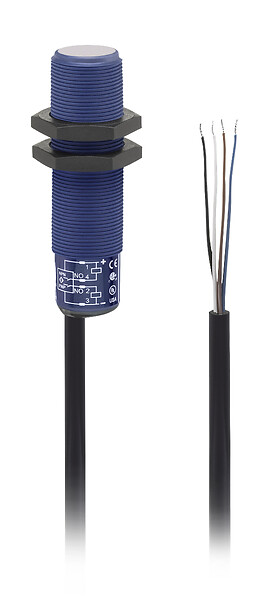

Hyde Park, Ultrasonic sensor, discrete, 18 mm barrel, 12 24 V DC
Commercialised
Expandir todos
Folha de dados
Range of product
Hyde Park
Sensor type
Ultrasonic sensor
Series name
Superprox 600
Sensor design
Cylindrical M18
Material
Plastic
Type of output signal
Discrete
Type of sensing window
Fixed
Discrete output function
1 NO
Wiring technique
4-wire
[Us] rated supply voltage
12...24 V DC with overload and short-circuit protection
Discrete output type
PNP/NPN
ISO thread
M18 x 1
Electrical connection
Cable, 3 m cable length
Product specific application
Discrete proximity
Enclosure material
ULTEM
Front material
Silicone rubber
Minimum size of detected object
Cylinder diameter 1.59 mm - up to 63.5 mm sensing distance
Current consumption
<= 50 mA
IP degree of protection
IP67
Marking
CE
Product certifications
UL
NEMA degree of protection
NEMA 4X (indoor use only)
Vibration resistance
+/-1 mm conforming to IEC 60068-2-6 (f = 10-55 Hz)
Shock resistance
30 gn in all 3 axes for 11 ms conforming to IEC 60068-2-27
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
14.288 CENTIMETER
Package 1 width
6.35 CENTIMETER
Package 1 length
14.288 CENTIMETER
Package 1 weight
167.829 GRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
