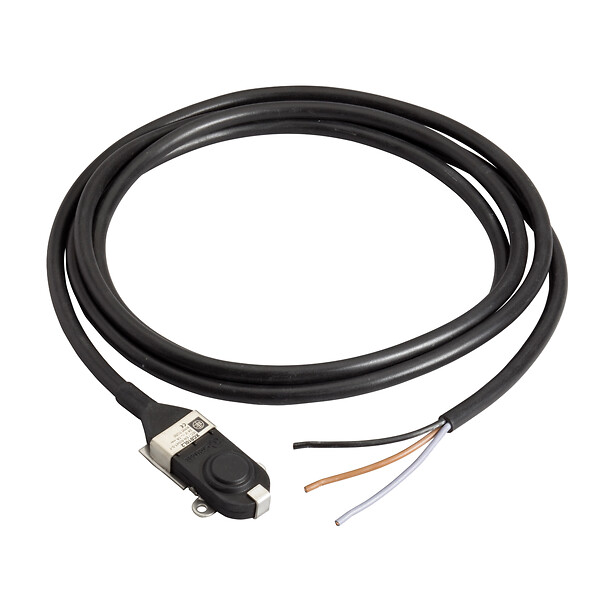

XC010L2
Microswitch, Limit switches XC Standard, miniature limit switch, flat plunger, cable length 2 m
End of comm. announced Data fim da comercialização : Data fim do serviço :
Expandir todos
Folha de dados
Range of product
OsiSense XC
Series name
Special format
Product or component type
Microswitch
Device short name
XC0
Detector design
Sealed
Head type
Plunger head
Fixing mode
By the body with steel, zinc passivated fixing supports
Movement of operating head
Linear
Type of operator
Flat plunger
Switch actuation
On end
Type of approach
Vertical approach
Electrical connection
A05 VVF cable
Cable composition
3 x 0.75 mm²
Contact operation
Snap action
Contacts material
Silver contacts
Cable outer diameter
7.6 MILLIMETER
IP degree of protection
IP66
Marking
CE
Standards
IEC 60947-5-1
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
3.9 CENTIMETER
Package 1 width
18.3 CENTIMETER
Package 1 length
19.9 CENTIMETER
Package 1 weight
164 GRAM
Unit type of package 2
S03
Number of units in package 2
15
Package 2 height
30 CENTIMETER
Package 2 width
30 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
2.889 KILOGRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Expandir todos
Desenhos técnicos

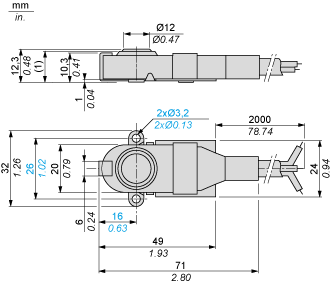

Dimensions
Wiring Diagram
Single-pole CO Snap Action
- 1 : Black
- 2 : Brown
- 4 : Blue
Expandir todos
Documentos e Downloads
Nome do documento
Data
Tamanho
2024-03-19
214436
2024-03-19
176864
Expandir todos
Produtos e acessórios relacionados

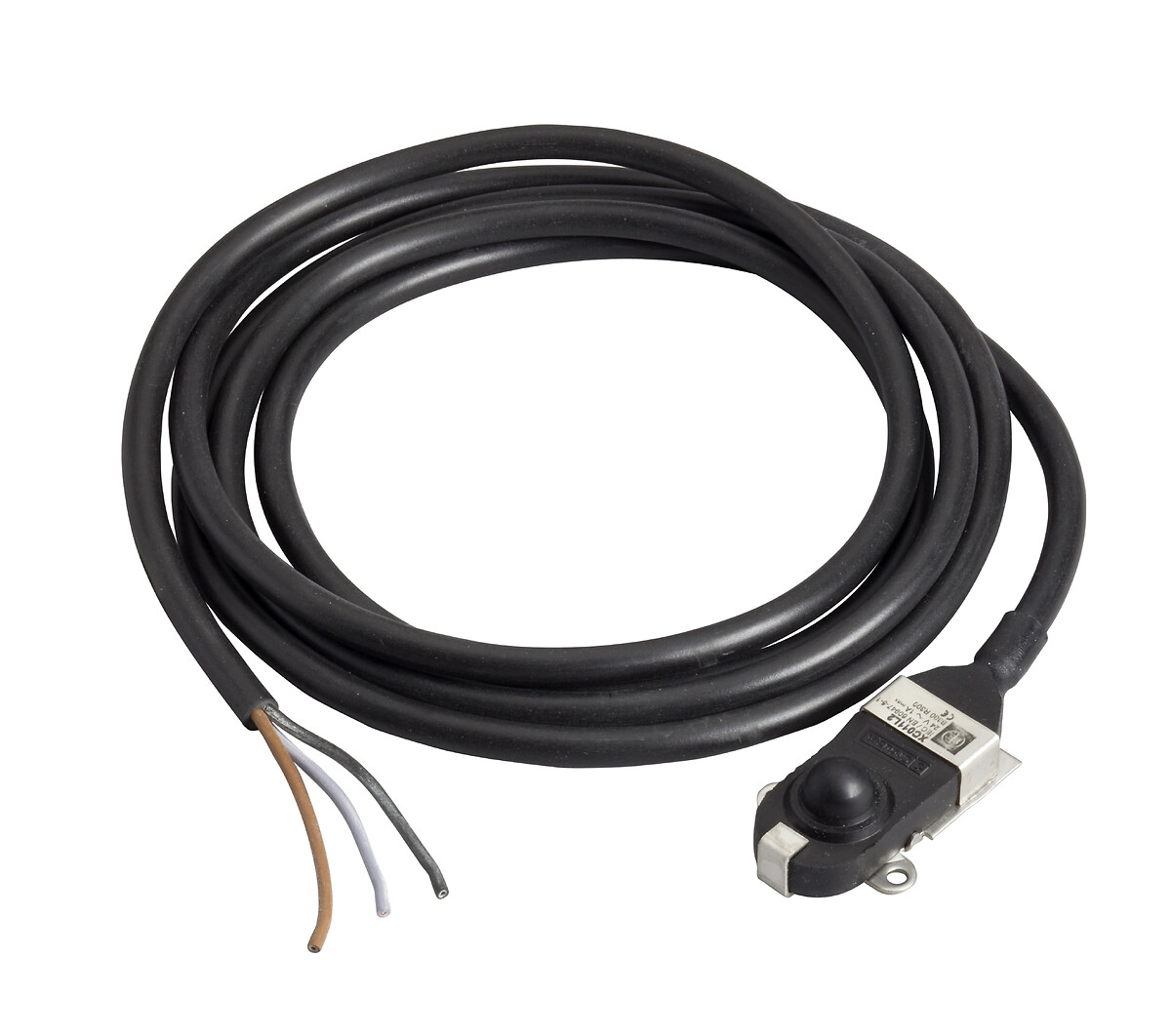

XC011L2
