XCCRF9
Flexible mounting kit - anti-rotation - for encoder Ø 90
End of commercialisation Data fim da comercialização : Data fim do serviço :
Expandir todos
Folha de dados
Accessory / separate part type
Anti-rotation device
Accessory / separate part category
Mounting accessories
Accessory / separate part designation
Flexible mounting kit
Accessory / separate part destination
Ø 90 mm encoder with through shaft
Product compatibility
XCC19 T
XCC29 T
XCC39 T
XCC29 T
XCC39 T
Kit composition
Screws
set of 2 flexible fixings
set of 2 flexible fixings
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
2.5 CENTIMETER
Package 1 width
5 CENTIMETER
Package 1 length
8 CENTIMETER
Package 1 weight
27 GRAM
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Expandir todos
Desenhos técnicos

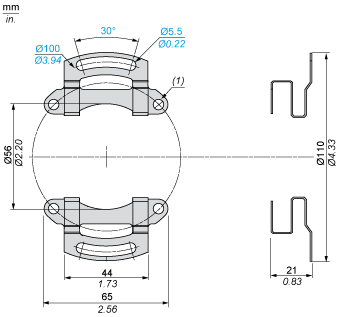

Dimensions
- (1) 4 holes Ø 5.2 at 90° on 78 PCD. TH M5 x 6 screw fixings
