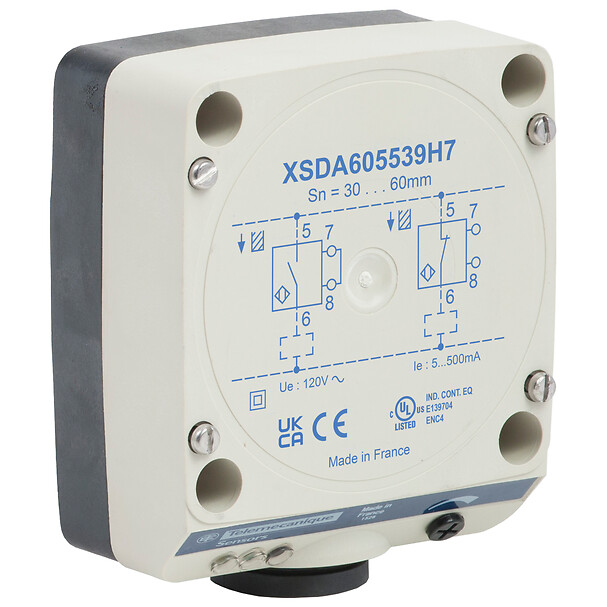

XSDA605539H7

Inductive proximity sensors XS, inductive sensor XSD 80x80x40, plastic, Sn40mm, 24...240 VAC, terminals

arrow

Commercialised

Descarregar dados técnicos em pdf Descarregar o arquivo cad 3d Encontre um distribuidor

Expandir todos

Folha de dados

Range of product
Telemecanique Inductive proximity sensors XS
Series name
General purpose
Sensor type
Inductive proximity sensor
Sensor name
XSD
Sensor design
Form 80 x 80 x 40
Size
40 mm
Body type
Fixed
Enclosure material
Plastic
Type of output signal
Discrete
Wiring technique
2-wire
Discrete output function
1 NO or 1 NC programmable
Electrical connection
Screw-clamp terminals
[Us] rated supply voltage
132 V AC
IP degree of protection
IP67
Detector flush mounting acceptance
Non flush mountable
Material
Plastic
Output circuit type
AC
Detection face
5 positions turret head
Front material
Plastic
Cable entry
1 entry tapped for 1/2" NPT cable gland
Sensing range
> 40...60 mm
Switching frequency
<= 10 Hz
Product certifications
CCC
Unit type of package 1
PCE
Number of units in package 1
1
Unit type of package 2
S02
Number of units in package 2
11
Package 2 height
15 CENTIMETER
Package 2 width
30 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
5.69 KILOGRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
