XCLJ1587719

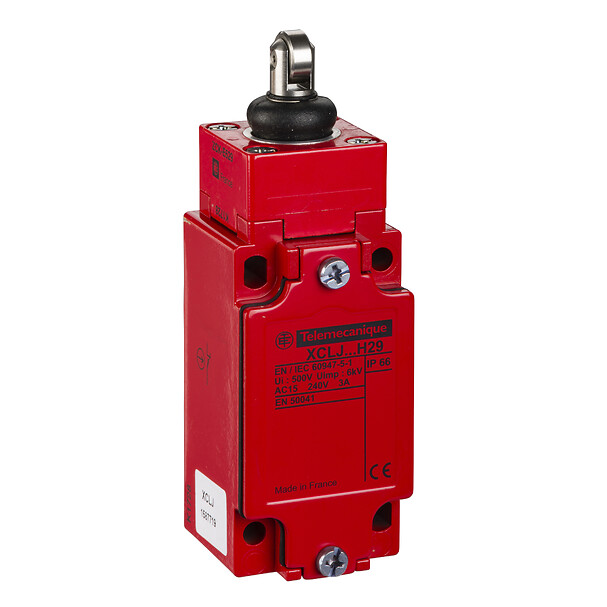

Limit switch, Limit switches XC Standard, 2NO+1NC 240 VAC 10 A XCL + options
End of commercialisation End of commercialization date : End of service date :
Expand all
Datasheet
Range of product
Telemecanique Limit switches XC Standard
Series name
Standard format
Product or component type
Limit switch
Device short name
XCLJ
Body type
Fixed
Material
Metal
Body material
Zamak
Head material
Zamak
Fixing mode
By the body
Cable entry
1 entry tapped for Pg 13.5 cable gland, cable outer diameter: 9-12 mm
Electrical connection
Screw-clamp terminals, clamping capacity: 1 x 0.5...2 x 2.5 mm²
Contacts type and composition
1 NC + 2 NO
Contacts insulation form
Zb
Contact operation
Snap action
Positive opening
With
Resistance across terminals
25 MOhm conforming to IEC 60255-7 category 3
Terminals description ISO n°1
(13-14)NO
(21-22)NC
(21-22)NC
Shock resistance
50 gn for 11 ms conforming to IEC 60068-2-27
Vibration resistance
25 gn (f= 10-500 Hz) conforming to IEC 60068-2-6
IP degree of protection
IP66 conforming to IEC 60529
IK degree of protection
IK07 conforming to IEC 62262
Overvoltage category
Class I conforming to IEC 61140
Standards
CENELEC EN 50041
IEC 60204-1
IEC 60947-5-1
IEC 60204-1
IEC 60947-5-1
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
12.6 CENTIMETER
Package 1 width
6.8 CENTIMETER
Package 1 length
4.1 CENTIMETER
Package 1 weight
445 GRAM
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
