XUSLNG5D1500

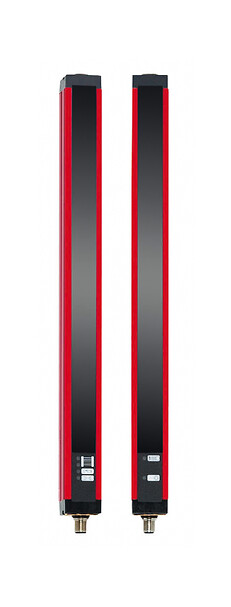

Safety light curtain type 2 - XUSLN - height 1500 mm - manual start
End of commercialisation End of commercialization date : End of service date :
XUSLNG5D1500 is replaced by the following product:
XUSL2E30H151N
Safety light curtain type 2, Telemecanique Safety light curtains XUSL, XUSL Hand protection, Std sensing range, Hp = 1510 mm, R=30 mm
Quantity : 1
Expand all
Datasheet
Range of product
Telemecanique Safety light curtains XUSL
Product or component type
Safety light curtain type 2
Device short name
XUSLN
Design
Compact slim
Product specific application
For hand protection
Output type
1 alarm output PNP, 2 safety outputs OSSD solid-state PNP (NO) (short-circuit protection)
Type of start
Manual
Detection system
Transmitter-receiver system
Response time
23 ms
Kit composition
1 arc suppressor set(s), 1 receiver(s), 1 test rod(s), 1 transmitter(s), 1 user guide with certificate of conformity, 2 sets of 2 brackets with fixings
Light source
GaAIAs LED, 880 nm
[Us] rated supply voltage
24 V DC +/- 20 %
Current consumption
90 mA no-load receiver, 1.09 A with maximum load receiver, 50 mA transmitter
Output voltage
24 V
Output circuit type
DC
Electrical connection
1 male connector M12 4 pins transmitter, 1 male connector M12 5 pins receiver
Local signalling
2 LEDs transmitter power supply, diagnostic, 4 LEDs receiver stop, run, top alignment, bottom alignment
Marking
CE
Material
Aluminium: casing, 30 % fibre glass impregnated nylon: end caps, acrylic: front face
Function available
Alignment aid using 2 LEDs, LED display of operating modes, monitoring of external switching devices EDM/MPCE, muting possible with external module XPSLCM1150
Fixing mode
End brackets
Standards
EMC 2004/108/EC
IEC 61496-1
IEC 61496-2 (type 2 ESPE)
machinery directive 2006/42/EC
work equipment directive 2009/104/EC
IEC 61496-1
IEC 61496-2 (type 2 ESPE)
machinery directive 2006/42/EC
work equipment directive 2009/104/EC
Product certifications
CSA
TÜV
UL
TÜV
UL
Safety level
Can reach category 2 correctly wired conforming to EN/ISO 13849-1, can reach PL = c correctly wired conforming to EN/ISO 13849-1, type 2 conforming to IEC 61496-1-2
IP degree of protection
IP65
Safety reliability data
PFH = 2.29E-7 1/h conforming to IEC 61508 verified in worst case conf: 6 beams 100 year(s)
Shock resistance
10 gn for 16 ms conforming to IEC 61496-1
Vibration resistance
0.35 +/- 0.05 mm (f= 10-55 Hz) conforming to IEC 61496-1
Unit type of package 1
PCE
Number of units in package 1
1
