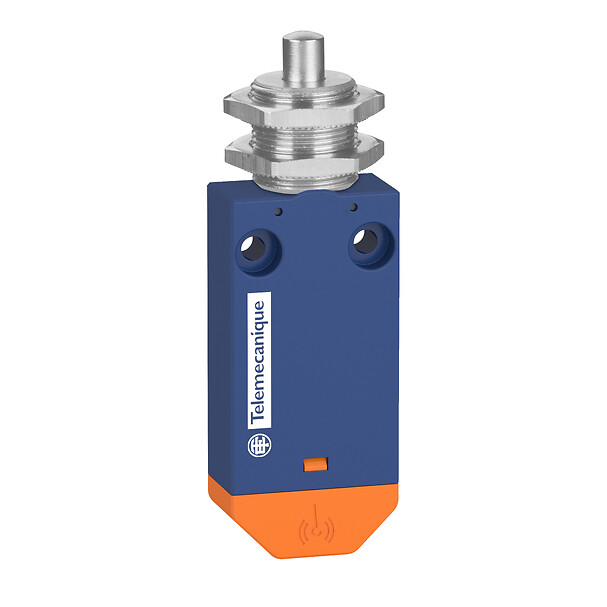

XCMW1H0

Telemecanique Limit switches XC Standard

Standard format

Wireless limit switch

XCMW

Fixed

M18 plunger head

Plastic

Plastic

Metal

By 2 screws

Spring return plunger

On end

ZigBee green power - 2.4 GHz conforming to IEEE 802.15.4

On end approach, 1 direction

PW1

<= 2 ms

Snap action

60 CYCLE_PER_MINUTE

3600

Radiated emission, immunity for industrial environments, susceptibility to electromagnetic fields - test level: 3 V/m (80...2700 MHz, distance = 20 m), susceptibility to electromagnetic fields - test level: 10 V/m (80...2000 MHz), electrostatic discharge immunity test - test level: 6 kV (on contact (on metal parts)), electrostatic discharge immunity test - test level: 8 kV (in free air (in insulating parts))

50 gn for 11 ms conforming to IEC 60068-2-27

25 gn (f= 10-500 Hz) conforming to IEC 60068-2-6, +/- 10 mm (f= 2-11 Hz) conforming to IEC 60068-2-6

IP65 conforming to IEC 60529

IK04 conforming to IEC 62262

1999/5/EC - R&TTE directive
2004/108/EC - electromagnetic compatibility

IEC 60947-1
IEC 60947-5-1

IC conforming to RSS, FCC conforming to RCM

PCE

1

3.2 CENTIMETER

4.7 CENTIMETER

12.7 CENTIMETER

90 KILOGRAM

1
