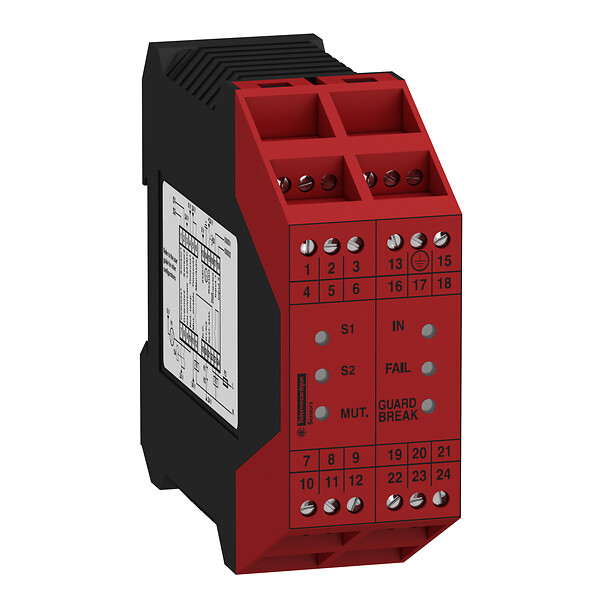

XPSLCMUT1160
Preventa safety module, Preventa Safety automation, XPSLC, Monitoring mute function light curtain, type2, type4
Commercialised
Tümünü genişlet
Veri sayfası
Range of product
Telemecanique Safety light curtains XUSL
Product or component type
Preventa safety module
Safety module name
XPSLCM
Safety module application
For the muting function of type 2 and type 4 safety light curtains monitored
Function of module
Muting
Safety level
Can reach PL = e with the appropriate control system and correctly wired conforming to ISO 13849-1, can reach category 4 with the appropriate control system and correctly wired conforming to ISO 13849-1, can reach SILCL 3 with the appropriate control system and correctly wired conforming to IEC 62061
Safety reliability data
PFHd = 6.42E-9...5.03E-8 1/h conforming to IEC 62061, B10d = 800000 conforming to ISO 13849-1, MTTFd = 26...100 years conforming to ISO 13849-1, DC = 96.2...98.9 % conforming to ISO 13849-1
Synchronisation time between inputs
-
Connections - terminals
Screw terminal
Output type
-
Number of additional circuits
-
[Us] rated supply voltage
24 V DC - 20...20 %
Power consumption in W
5 WATT
Number of controlled devices
-
Input compatibility
-
Response time on input open
20 MILLISECOND
Local signalling
6 LEDs
Mounting support
35 mm symmetrical DIN rail
Standards
IEC 62061
ISO 13849-1
ISO 13849-1
Product certifications
cULus
TÜV
TÜV
IP degree of protection
IP2X conforming to IEC 60529
Unit type of package 1
PCE
Number of units in package 1
1
Unit type of package 2
S02
Number of units in package 2
8
Package 2 height
15 CENTIMETER
Package 2 width
30 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
2.668 KILOGRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
