XUSZAMT4PTS

Telemecanique Safety light curtains XUSL

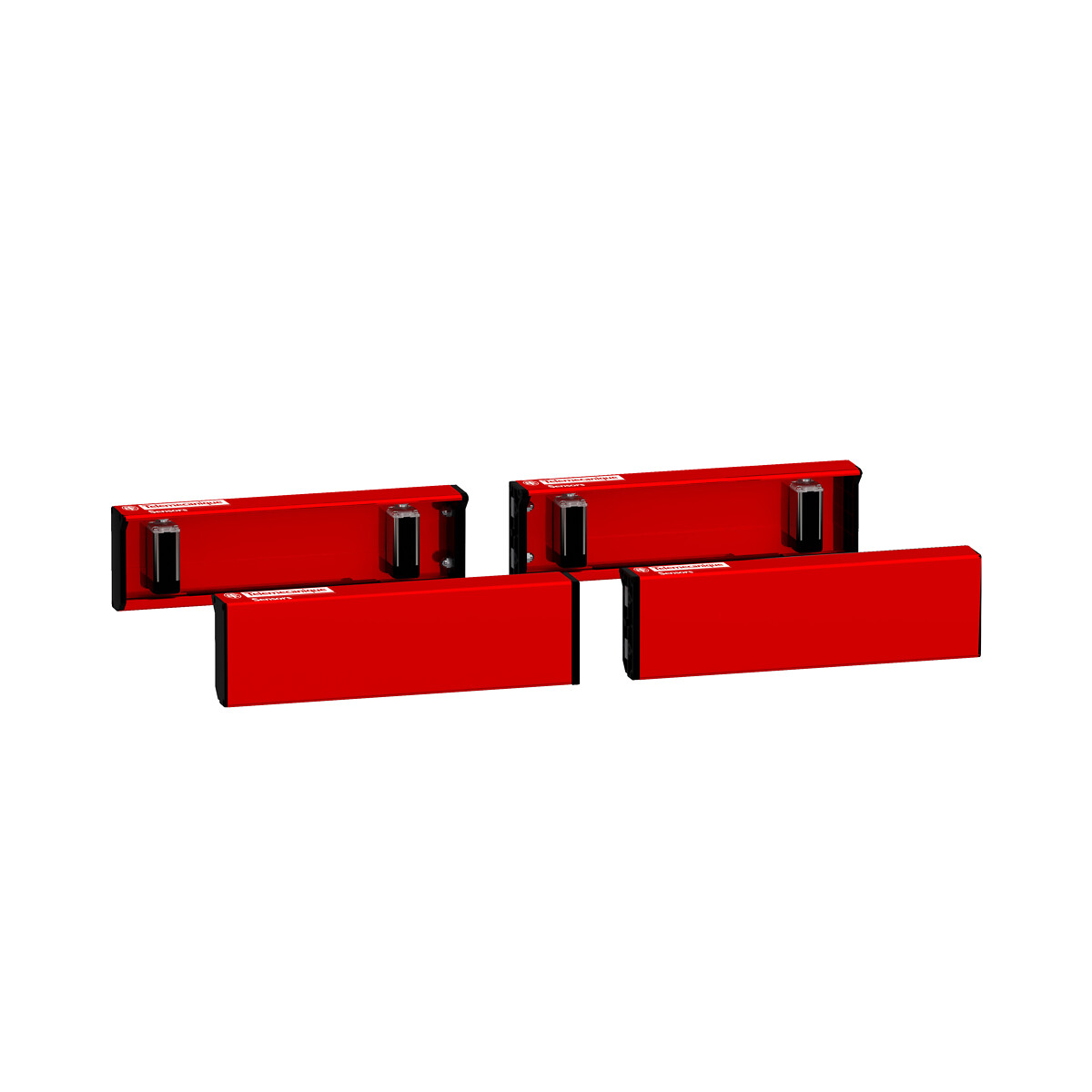

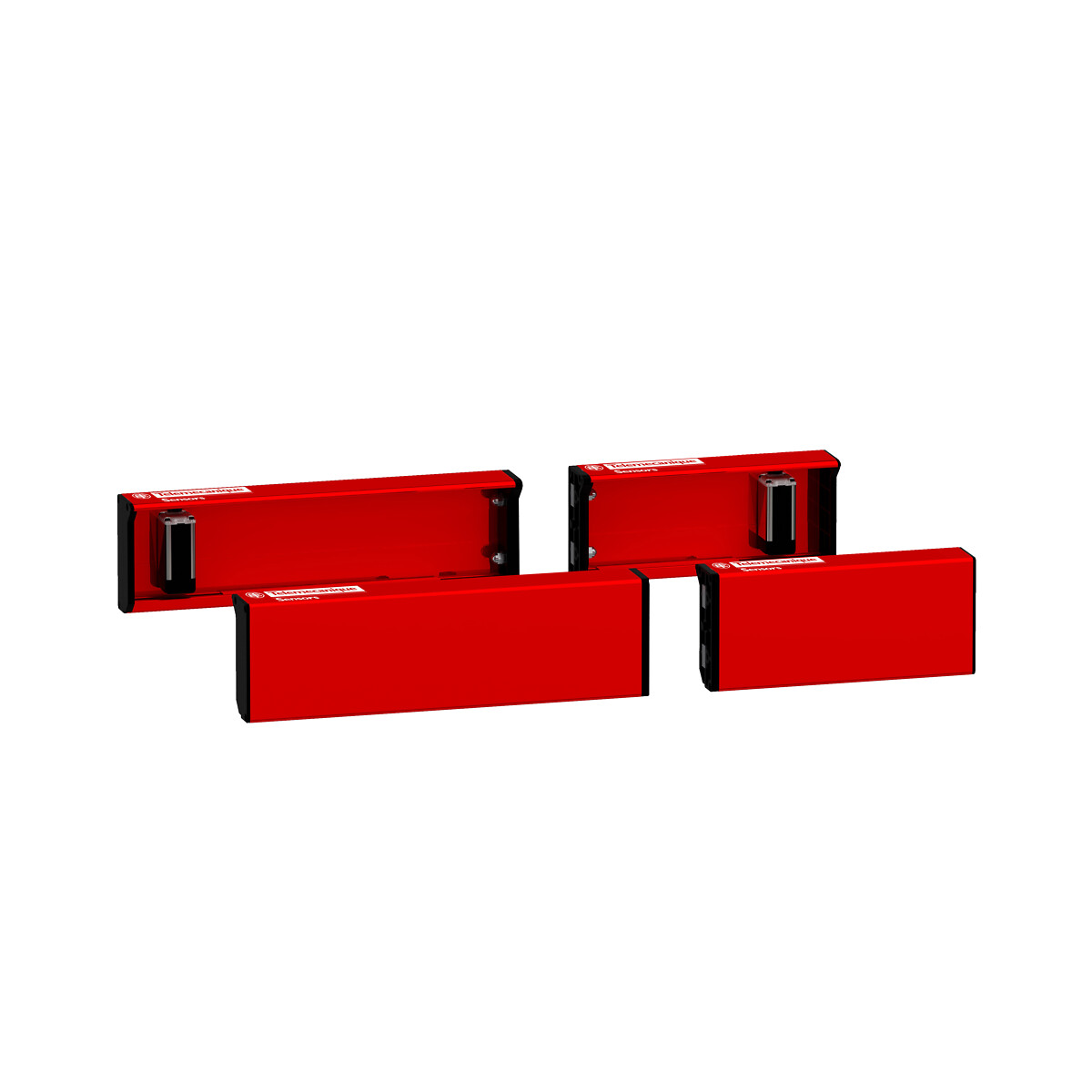

Multi-beam prebuilt muting arms

XUSZAM

4 discrete solid-state PNP (NO)

XUSL4M

Through beam

Conveyor system entry/exit direction, conveyor system high speed

Detection of opaque parts

> 90 cm pallet length, > 90 cm space between package

< 100 ms

transmitter + receiver, quick start guide

IR LED 940 nm

24 V DC +/- 20 %

Via connector

42 mA

24 V

DC

<0.5 V

100 mA

4 yellow LED receiver

Red RAL 3000

89/336/EEC - electromagnetic compatibility
98/37/EEC - machinery

CE

PFHd = 2.73E-7 1/h

IP65

10 gn for 16 ms conforming to IEC 61496-1

0.35 +/- 0.05 mm (f= 10-55 Hz) conforming to IEC 61496-1

PCE

1

P12

1

14.5 CENTIMETER

20 CENTIMETER

103 CENTIMETER

5.53 KILOGRAM

1
