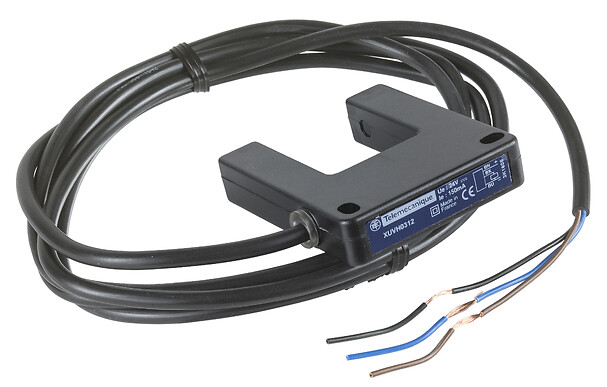

XUVH0312
Photoelectric sensors XU, XUV, fork, handling, 30X30mm, 12...24 VDC, cable 2 m
Commercialised
Tümünü genişlet
Veri sayfası
Range of product
Telemecanique Photoelectric sensors XU
Series name
Application material handling
Electronic sensor type
Photo-electric sensor
Sensor name
XUV
Sensor design
Fork
Detection system
Thru beam
Emission
-
Material
Plastic
Supply circuit type
DC
Wiring technique
3-wire
Discrete output type
PNP
Discrete output function
1 NO
Electrical connection
Cable
Product specific application
Detection of flags in lifts/transtockers
Lens material
PMMA
Enclosure material
ABS/PC
Type of output signal
Discrete
Output type
Solid state
Status LED
-
[Us] rated supply voltage
24 V DC with reverse polarity protection
Cable composition
3 x 0.34 mm²
Switching capacity in mA
<= 150 mA (overload and short-circuit protection)
Switching frequency
< 1 kHz
Delay first up
30 MILLISECOND
Current consumption
<= 20 mA no-load
Setting-up
Without sensitivity adjustment
Maximum voltage drop
<1.5 V (closed state)
Delay response
0.5 MILLISECOND
Delay recovery
0.5 MILLISECOND
Vibration resistance
7 gn, amplitude = +/- 1 mm (f = 10-42 Hz) conforming to IEC 60068-2-6
Shock resistance
30 gn (duration = 11 ms) conforming to IEC 60068-2-27
IP degree of protection
IP54 conforming to IEC 60529
Unit type of package 1
PCE
Number of units in package 1
1
Unit type of package 2
S02
Number of units in package 2
25
Package 2 height
15 CENTIMETER
Package 2 width
30 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
2.834 KILOGRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Tümünü genişlet
Teknik çizimler
Dimensions
- (1) Optical axis
- (2) Red LED
- (3) Diffuser
Wiring Schemes (3-Wire DC)
NO Function
- BN : Brown
- BK : Black
- BU : Blue
Detection Curve
