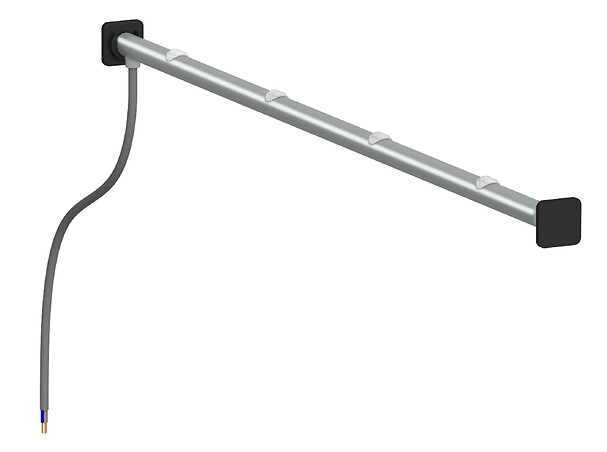

XUY415N4HL2
Photoelec roller conv 415x4 - 12..24 V DC - PNP/NPN NO/NC cable 2m
End of commercialisation Ticarileşme tarihi sonu : Servis tarihi sonu :
Tümünü genişlet
Veri sayfası
Range of product
Telemecanique Photoelectric sensors XU
Series name
Application
Electronic sensor type
Photo-electric sensor
Sensor name
XUY
Sensor design
Roller sensor
Detection system
Diffuse
Material
Metal
Type of output signal
Discrete
Supply circuit type
DC
Wiring technique
4-wire
Discrete output type
PNP or NPN
Discrete output function
1 NO or 1 NC programmable
Electrical connection
Cable
Product specific application
Conveyor system
Emission
-
Enclosure material
Aluminium
Lens material
Polycarbonate
Cover material
PVC
Output type
Solid state
[Us] rated supply voltage
-
Status LED
-
Voltage drop
<2 V at 100 mA (closed state)
Switching capacity in mA
100 mA (overload and short-circuit protection)
Current consumption
< 35 mA no-load
Delay response
0.5 ms
IP degree of protection
IP65 conforming to IEC 60529, IP40 conforming to IEC 60529
Unit type of package 1
PCE
Number of units in package 1
1
