XUM2ANSBL2R

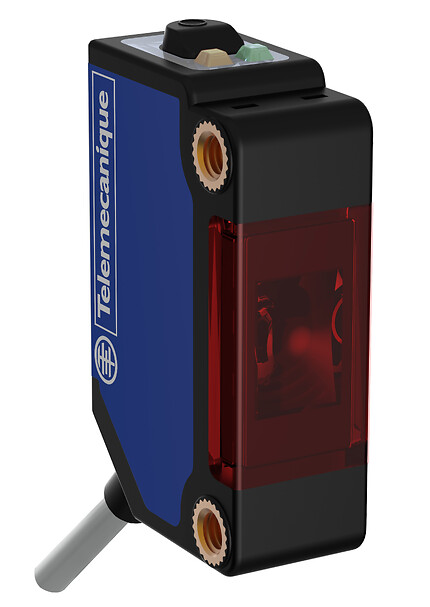

Photoelectric sensors XU, miniature, thru beam, Sn=15 m, NPN, receiver, cable 2 m

End of commercialisation End of commercialization date : End of service date :

XUM2ANSBL2R is replaced by the following product:

XUM2ANXBL2R

Photoelectric sensors XU, miniature, thru beam, Smax=30 m, receiver, NPN, cable 2 m

Quantity :  1

Expand all

Datasheet

Range of product
Telemecanique Photoelectric sensors XU
Series name
General purpose single mode
Electronic sensor type
Photo-electric sensor receiver
Sensor name
XUM
Sensor design
Miniature
Detection system
Thru beam
Material
Plastic
Type of output signal
Discrete
Supply circuit type
DC
Wiring technique
3-wire
Discrete output type
NPN
Discrete output function
1 NO or 1 NC programmable
Electrical connection
Cable
Enclosure material
PBT
Lens material
Modified polyarylate
Status LED
-
Output type
Solid state
[Us] rated supply voltage
12...24 V DC with reverse polarity protection
Switching capacity in mA
<= 100 mA with overload and short-circuit protection
Switching frequency
500 Hz
Maximum voltage drop
<2 V
Current consumption
13 mA no-load
Delay first up
100 MILLISECOND
Delay response
1 MILLISECOND
Delay recovery
1 MILLISECOND
Setting-up
Sensitivity adjustment by pushbutton
Vibration resistance
+/- 1.5 mm (f = 10-55 Hz)2 hours in each direction X, Y and Z conforming to IEC 60068-2-6
Shock resistance
500 m/s² for X, Y, Z directions for 10 cycles (approx. 100 min) conforming to IEC 60068-2-27
IP degree of protection
IP67 conforming to IEC 60529
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
16 CENTIMETER
Package 1 width
2 CENTIMETER
Package 1 length
11 CENTIMETER
Package 1 weight
63 GRAM
Unit type of package 2
BB1
Number of units in package 2
1
Package 2 height
20 CENTIMETER
Package 2 width
0.1 CENTIMETER
Package 2 length
15 CENTIMETER
Package 2 weight
63 GRAM
Unit type of package 3
S01
Number of units in package 3
30
Package 3 height
15 CENTIMETER
Package 3 width
15 CENTIMETER
Package 3 length
40 CENTIMETER
Package 3 weight
2.289 KILOGRAM
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Expand all

Technical Drawings

Dimensions

Receiver. Pre-cable Version

epds

Receiver. Pre-cable Version

epds
  • (1) Output indicator (orange)
  • (2) Stability indicator (green)
  • (3) Setting pushbutton
  • (4) Reception

Connections and Schema

Connections and Schema

NPN

epds
  • BN : Brown
  • BU : Blue
  • BK : Black

Mounting and Clearance

Tightening Torque

epds
  • (1) Base mounting fixing bracket

Performance Curves

Thru-beam System

epds

Thru-beam System

epds
  • (1) Transmitter
  • (2) Receiver
  • (y) Parallel movement in mm
  • (x) Distance in m
