9012GGW21

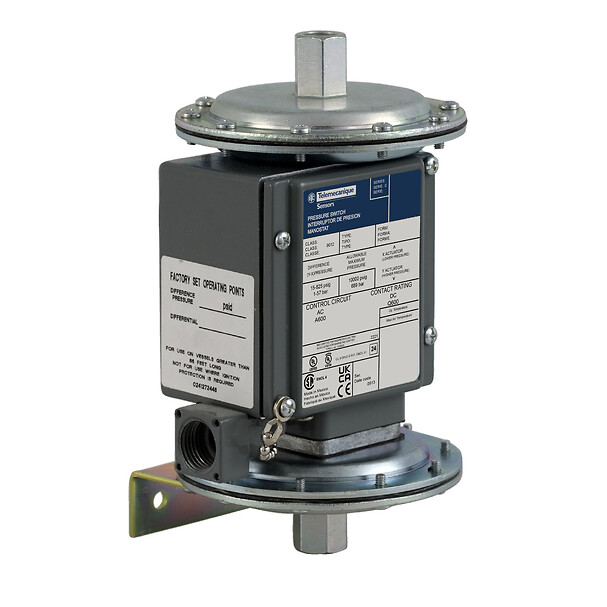

Pressure switch 9012G, adjustable scale, 2 thresholds, 0 to 75 PSIG
Commercialised
Expand all
Datasheet
Range of product
9012G
Pressure sensor type
Electromechanical pressure switch
Pressure sensor name
9012G
Maximum pressure
100 psi
Contacts type and composition
2(NC-NO), DPDT-DB, Form ZZ, snap action, silver nickel contacts
Controlled fluid
Hydraulic oil (-40-250 °F), non-corrosive liquids (-40-250 °F), air (-40-250 °F), non-corrosive gas (-40-250 °F)
Fluid connection type
0.25 inch 18 NPTF conforming to UL 508
Pressure switch type of operation
Monitors the difference between 2 thresholds
Scale type
Adjustable differential
Local display
Without
Cable entry
0.5 inch NPT conduit entrance
Terminal block type
8 screw terminals
Electrical connection
Screw-clamp terminals, AWG 22...AWG 12
Electrical circuit type
Control circuit
Local signalling
Without:
Setting
Internal
Enclosure material
Die cast aluminium alloy 380
Pressure actuator
Diaphragm nitrile (Buna-N)
Operating position
Any position
Materials in contact with fluid
Nitrile (Buna-N)
zinc plated steel
zinc plated steel
Operating rate
120 cyc/mn
Vibration resistance
2 gn (f= 40-150 Hz) conforming to IEC 68-2-6
Shock resistance
50 gn conforming to IEC 58-2-27
Standards
CSA C22.2 No 14
UL 508
UL 508
Product certifications
CE
CSA LR25490 class 3211 03
CSA LR25490 class 3211 03
NEMA degree of protection
NEMA 4/4X/13 conforming to UL 50
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
38.71 CENTIMETER
Package 1 width
15.24 CENTIMETER
Package 1 length
98.322 CENTIMETER
Package 1 weight
1.361 KILOGRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
