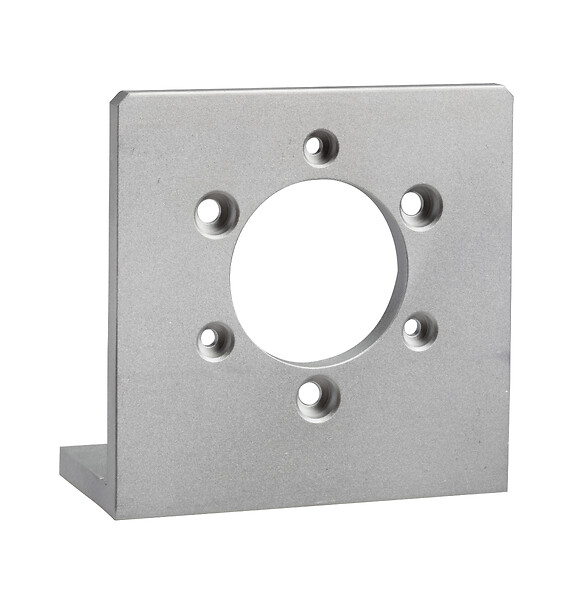

XCCRE5SN
Plain bracket, for encoder Ø 58
End of commercialisation End of commercialization date : End of service date :
Expand all
Datasheet
Accessory / separate part type
Fixing bracket
Accessory / separate part category
Mounting and fixing accessories
Accessory / separate part destination
Ø 58 mm encoder with solid shaft
Product compatibility
XCC1510P
XCC2510P
XCC3510P
XCC2510P
XCC3510P
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
4 CENTIMETER
Package 1 width
8 CENTIMETER
Package 1 length
8 CENTIMETER
Package 1 weight
136 GRAM
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Expand all

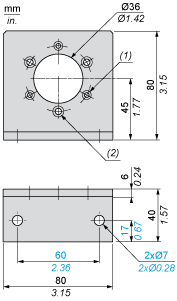

Technical Drawings
Dimensions
- (1) 3 counterbored holes for CHC M3 screws at 120° on 48 PCD
- (2) 3 counterbored holes for CHC M4 screws at 120° on 48 PCD
Expand all
Documents & Downloads
Document name
Date
Size
11/21/2007
2144
11/21/2007
23874
11/21/2007
240146
11/21/2007
33892
11/21/2007
340954
11/21/2007
35766
11/21/2007
36465
11/21/2007
3710
11/21/2007
43349
11/21/2007
53614
7/18/2024
1596
7/18/2024
1596
7/18/2024
1596
7/18/2024
1596
7/18/2024
1596
7/18/2024
1596
7/18/2024
1596
7/18/2024
1596
7/18/2024
1596
7/18/2024
1596
7/18/2024
1596
7/18/2024
1596
7/18/2024
1596
7/18/2024
1596
7/18/2024
1596
7/18/2024
1596
