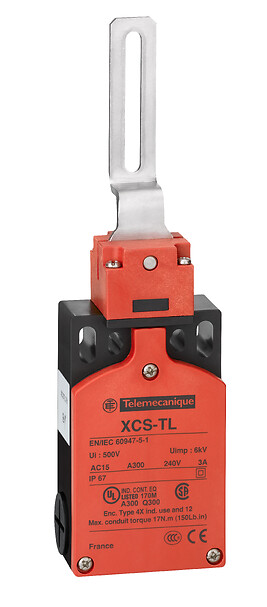

XCSTL782

Telemecanique Safety switches XCS

Guard switch

XCSTL

Plastic

Turret head rotary lever

Double insulated

Elbowed flush lever

Centred

Terminal

1 NC + 1 NC + 1 NO

Slow-break, break before make

1 x 0.34...2 x 0.75 mm² with or without cable end

2 entries tapped for M16 x 1.5

With NC contact

B300, AC-15 (Ue = 120 V, Ie = 6 A) conforming to IEC 60947-5-1, B300, AC-15 (Ue = 240 V, Ie = 3 A) conforming to IEC 60947-5-1, Q300, DC-13 (Ue = 125 V, Ie = 0.2 A) conforming to IEC 60947-5-1, R300, DC-13 (Ue = 250 V, Ie = 0.1 A) conforming to IEC 60947-5-1

30 mOhm conforming to IEC 60947-5-4

Can reach category 4 with the appropriate monitoring system and correctly wired conforming to ISO 13849-1, can reach PL = e with the appropriate monitoring system and correctly wired conforming to ISO 13849-1, can reach SIL 3 with the appropriate monitoring system and correctly wired conforming to IEC 61508

B10d = 5000000 value given for a life time of 20 years limited by mechanical or contact wear

Polyamide PA66 fibre glass impregnated

Stainless steel

CSA C22.2 No 14
EN 1088/ISO 14119
IEC 60204-1
IEC 60947-5-1
IEC 60947-5-4
ISO 12100
UL 508

BG
CSA
UL

TC
TH

50 gn (f= 10-500 Hz) conforming to IEC 60068-2-6

50 gn for 11 ms conforming to IEC 60068-2-27

Class II conforming to IEC 61140

IP67 conforming to IEC 60529

PCE

1
