XS912S1PAM12
Inductive sensor, XS9, M12, stainless steel 316L, Sn 6 mm, PNP, NO, M12 connector, L60 mm, 12...24 VDC, flush, F&B
COMMERCIALISED
Expand all
Datasheet
Range of product
Telemecanique Inductive proximity sensors XS
Series name
Application
Sensor name
XS9
Sensor type
Inductive proximity sensor
Sensor design
Cylindrical M12
Device application
Food and beverage
ETIM classification
ETIM 9 - EC002714 - Inductive proximity switch
Body type
Single piece body
Material
Stainless steel 316L
Front material
Stainless steel 316L
Enclosure material
Stainless steel 316L
[Sn] nominal sensing distance
6 mm
Wiring technique
3-wire
Detector flush mounting acceptance
Flush mountable
Delay response
0.0001 ms
Thread type
M12 x 1
Product certifications
cULus
Ecolab
Ecolab
Marking
CE
Indivisible sale quantity
1
Sensing range
> 4...8 mm
Repeat accuracy
<= 5 % of Sr
Electrical connection
Male connector M12, 4 pins
Supply voltage limits
10-30 V DC
[Us] rated supply voltage
12...24 V DC with reverse polarity protection
Switching capacity in mA
<= 200 mA with overload and short-circuit protection
Voltage drop
<2 V (closed)
Current consumption
<= 10 mA no-load
Status LED
Output state: 1 LED (yellow)
Output circuit type
DC
Type of output signal
Discrete
Detection face
Frontal
Discrete output type
PNP
Discrete output function
1 NO
Switching frequency
<= 600 Hz
Differential travel
1...15 % of Sr
Delay first up
40 ms
Delay recovery
0.015 ms
Residual current
0.1 mA open state
Threaded length
41 mm
Height
12 mm
Length
60 mm
Size
60 mm
Product weight
0.024 kg
IP degree of protection
IP69K conforming to DIN 40050, IP68 conforming to IEC 60529
Ambient air temperature for operation
-13…185 °F
Ambient air temperature for storage
-13…185 °F
Shock resistance
30 gn for 11 ms conforming to IEC 60068-2-27
Vibration resistance
25 gn amplitude = +/- 1 mm (f = 10-55 Hz) conforming to IEC 60068-2-6
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Warranty
18 months
Country of origin
HU (Hungary)
Unit type of package 1
PCE
Number of units in package 1
1
3666916019351
Package 1 height
1.5 cm
Package 1 width
10 cm
Package 1 length
11 cm
Package 1 weight
0.024 kg
Unit type of package 2
S01
Number of units in package 2
25
13666916019358
Package 2 height
15 cm
Package 2 width
15 cm
Package 2 length
40 cm
Package 2 weight
0.981 kg
23666916019355
Expand all
Technical Drawings

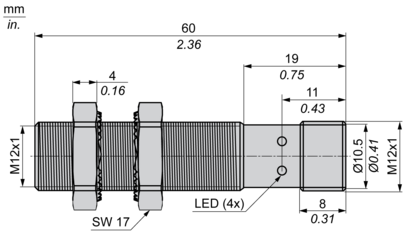

Dimensions
Minimum Mounting Distances in mm
Wiring Schemes
