AO2

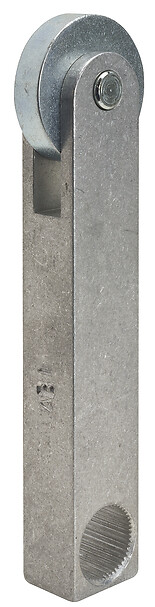

LEVER ARM 2.5 W/ 1-1/2 DIA ROLLER
End of commercialisation Fecha de fin de comercialización : Fecha de fin del servicio :
Expandir todo
Ficha de datos
Range of product
L100/300
Series name
Severe duty
Product or component type
Limit switch lever
Device short name
L100/300
Movement of operating head
Rotary
Type of operator
Aluminium spring return roller lever length: 2.5-2.5 in - offset: - -
Type of roller
1 steel center roller diameter: 1.5 in - width: 0.25 in
Type of approach
Lateral approach
Positive opening
Without
Switch actuation
By 30° cam
Environmental characteristic
Standard environment
Unit type of package 1
PCE
Number of units in package 1
1
California proposition 65
WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP) and Diisononyl phthalate (DINP) which is known to the State of California to cause Carcinogen and Reproductive harm. For more information go to www.p65warnings.ca.gov
