9007F4

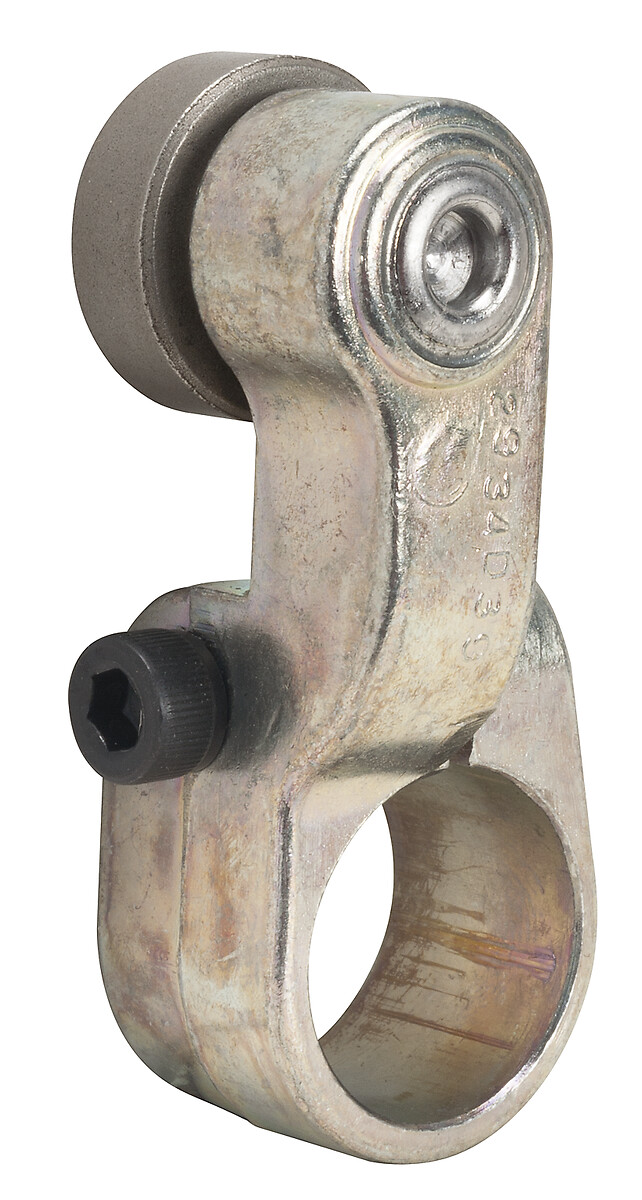

Limit switch lever, 9007, arm f+fc +options
Commercialised
Rozbalit vše
Katalogový list
Range of product
9007
Series name
Severe duty
Product or component type
Limit switch lever
Device short name
9007T/FT
Movement of operating head
Rotary
Type of operator
Cast zinc spring return roller lever length: 1.88-1.88 in - offset: 0.75 in -
Type of roller
1 steel inside offset roller diameter: 0.75 in - width: 0.25 in
Type of approach
Lateral approach
Positive opening
Without
Switch actuation
By 30° cam
Environmental characteristic
Standard environment
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
6.452 CENTIMETER
Package 1 width
2.54 CENTIMETER
Package 1 length
16.387 CENTIMETER
Package 1 weight
45.359 GRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
