XR2AA03K6

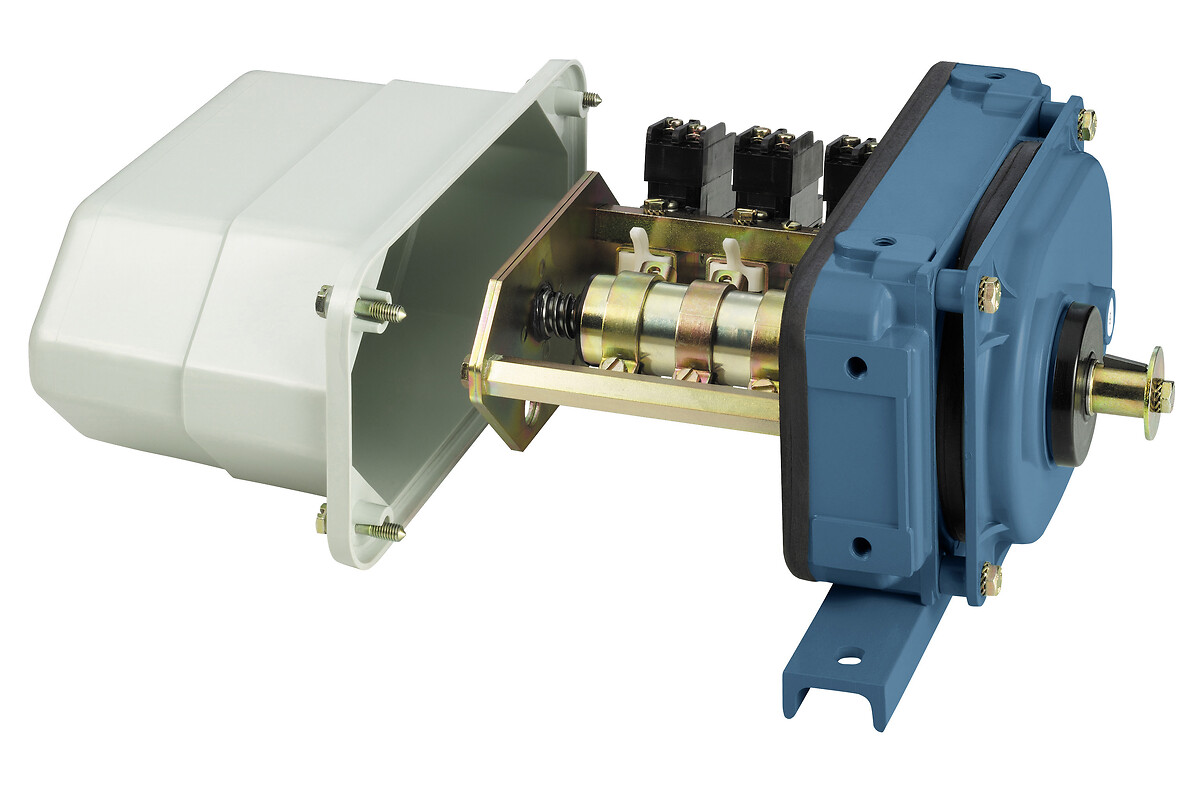

Single stage heavy duty screw limit switch, XR and XF, XR2, 3C/O, aluminium alloy housing
End of commercialisation End of commercialization date : End of service date :
Expand all
Datasheet
Range of product
XR and XF
Product or component type
Single-stage heavy duty screw limit switch
Device short name
XR2
Product specific application
Liquid level control in pumping systems
position control of moving parts of hoisting or materials handling equipment
position control of moving parts of hoisting or materials handling equipment
Material
Aluminium alloy: body housing, plastic: cover
Type of operator
Drive shaft, end fittings with sprocket key and washer
Maximum number of turns
-
Contact operation
Snap action
Contacts type and composition
3 C/O
Resistance across terminals
25 MEGOHM
Connections - terminals
Screw clamp terminals, 2 x 1.5 mm² with or without cable end, screw clamp terminals, 2 x 2.5 mm² without cable end
Cable entry
2 entries tapped for Pg 13 cable gland, clamping capacity: 9-12 mm
Standards
EN/IEC 60947-5-1
Protective treatment
TC
Shock resistance
50 gn for 11 ms
Vibration resistance
> 5 gn (f= 10-55 Hz)
IP degree of protection
IP54 conforming to EN/IEC 60529
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
22 CENTIMETER
Package 1 width
30 CENTIMETER
Package 1 length
36 CENTIMETER
Package 1 weight
6.26 KILOGRAM
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
