XSPN15122EX

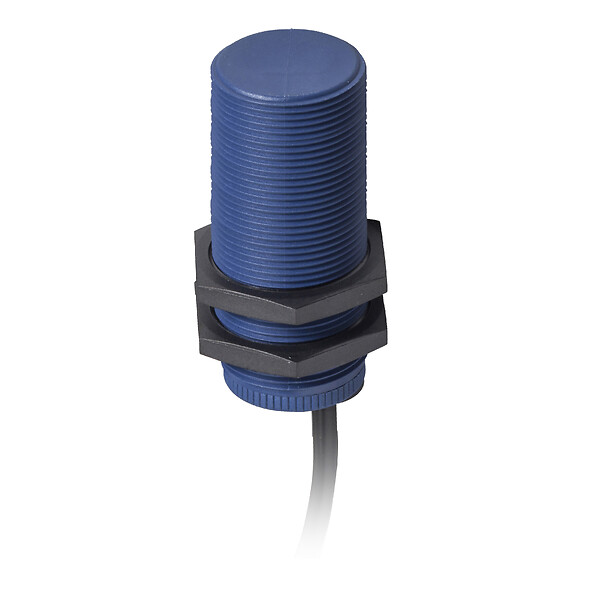

Inductive proximity sensors XS ATEX D, inductive sensor Namur, M30, Sn15mm, 7...12 VDC, cable 2 m
End of commercialisation End of commercialization date : End of service date :
Expand all
Datasheet
Range of product
Telemecanique Inductive proximity sensors XS
Series name
Application
Sensor type
Inductive proximity sensor
Sensor name
XSP
Device application
ATEX dust
Sensor design
Cylindrical M30
Size
30 mm
Body type
Fixed
Type of output signal
Discrete
Wiring technique
2-wire
Discrete output function
1 NC
Detector flush mounting acceptance
Non flush mountable
Discrete output type
Namur
Material
Plastic
Electrical connection
Cable
Output circuit type
DC
[Us] rated supply voltage
7...12 V DC
Switching capacity in mA
<= 1 mA
IP degree of protection
IP67 conforming to IEC 60529
Enclosure material
Plastic
Detection face
Frontal
Thread type
M30 x 1.5
Front material
PPS
Sensing range
8...15 mm
Cable composition
2 x 0.34 mm²
Residual current
3 mA open state
Status LED
Output state: 1 LED (red)
Wire insulation material
PVC
Switching frequency
<= 200 Hz
Marking
II1 D-Ex ia IIIC T85°C Da IP66/67
Product certifications
INERIS 04ATEX0016X
Standards
EN/IEC 60079-11
IEC 60079-0
IEC 60079-0
Environmental characteristic
Hazardous location
Directives
94/9/EC - ATEX directive
Dust zone
Zone 20
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
13.5 CENTIMETER
Package 1 width
4.5 CENTIMETER
Package 1 length
8.5 CENTIMETER
Package 1 weight
135 GRAM
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Expand all
Technical Drawings
Dimensions
Minimum Mounting Distances
Wiring Schemes
2-wire DC Polarised
Performance Curves
Standard Steel Target : 45x45x1 mm
