XCMD21F2M12
Limit switch, Limit switches XC Standard, XCMD, M12 steel roller plunger, 1C/O, snap, M12
Commercialized
Expand all
Datasheet
Range of product
Telemecanique Limit switches XC Standard
Series name
Standard format
Product or component type
Limit switch
Device short name
XCMD
Sensor design
Miniature
Body type
Plug-in body
Head type
M12 plunger head
Material
Metal
Body material
Zamak
Head material
Zamak
Fixing mode
By the head
Movement of operating head
Linear
Type of operator
Spring return roller plunger metal
Type of approach
Lateral approach, 2 directions
Number of poles
1
Contacts type and composition
1 C/O
Contact operation
Snap action
Switch actuation
By 30° cam
Electrical connection
Male connector M12, 4 pins
Contacts insulation form
Za
Positive opening
Without
Minimum force for tripping
7 N
Maximum actuation speed
10 cm/s
[Ie] rated operational current
1.5 A at 240 V, AC-15 conforming to EN/IEC 60947-5-1 appendix A
0.1 A at 250 V, DC-13 conforming to EN/IEC 60947-5-1 appendix A
0.1 A at 250 V, DC-13 conforming to EN/IEC 60947-5-1 appendix A
[Ithe] conventional enclosed thermal current
3 A
[Ui] rated insulation voltage
250 V (pollution degree 3) conforming to IEC 60947-5-1
Maximum resistance across terminals
25 mOhm conforming to IEC 60255-7 category 3
[Uimp] rated impulse withstand voltage
2.5 kV conforming to IEC 60664
2.5 kV conforming to IEC 60947-1
2.5 kV conforming to IEC 60947-1
Short-circuit protection
4 A cartridge fuse, type gG
Electrical durability
5000000 cycles, DC-13, 24 V, 3 W, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
5000000 cycles, DC-13, 48 V, 2 W, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
5000000 cycles, DC-13, 120 V, 1 W, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
5000000 cycles, DC-13, 48 V, 2 W, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
5000000 cycles, DC-13, 120 V, 1 W, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C
Mechanical durability
10000000 cycles
Width
30 mm
Height
50 mm
Depth
16 mm
Net weight
0.11 kg
Shock resistance
25 gn for 18 ms conforming to IEC 60068-2-27
Vibration resistance
5 gn (f= 10…500 Hz) conforming to IEC 60068-2-6
IP degree of protection
IP66 conforming to IEC 60529
IP67 conforming to IEC 60529
IP68 conforming to IEC 60529
IP67 conforming to IEC 60529
IP68 conforming to IEC 60529
IK degree of protection
IK06 conforming to EN 62262
Electrical shock protection class
Class I conforming to IEC 61140
Class I conforming to NF C 20-030
Class I conforming to NF C 20-030
Ambient air temperature for operation
-25…70 °C
Ambient air temperature for storage
-40…70 °C
Protective treatment
TC
Product certifications
CSA
UL
CCC
UL
CCC
Standards
CSA C22.2 No 14
UL 508
EN/IEC 60947-5-1
EN/IEC 60204-1
UL 508
EN/IEC 60947-5-1
EN/IEC 60204-1
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
1.8 cm
Package 1 Width
5.3 cm
Package 1 Length
8.8 cm
Package 1 Weight
114.0 g
Unit Type of Package 2
S01
Number of Units in Package 2
40
Package 2 Height
15 cm
Package 2 Width
15 cm
Package 2 Length
40 cm
Package 2 Weight
4.785 kg
Unit Type of Package 3
P06
Number of Units in Package 3
1280
Package 3 Height
75 cm
Package 3 Width
40 cm
Package 3 Length
80 cm
Package 3 Weight
170.92 kg
Sustainable offer status
Green Premium product
REACh Regulation
EU RoHS Directive
Pro-active compliance (Product out of EU RoHS legal scope)
Mercury free
Yes
RoHS exemption information
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Warranty
18 months
Expand all
Technical Drawings

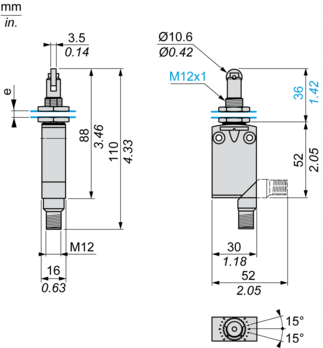

Dimensions
e : 8 mm max, panel cut-out Ø 12.5 mm, fixing nut thickness 3.5 mm.
Panel Mounting

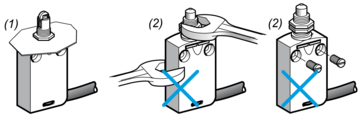

Mounting and Fixing Limit Switches by the Head
(1) Recommended
(2) Forbidden
Setting-up
Plunger or Multi-directional Heads
Wiring Diagram
Single-pole CO Snap Action + Integral M12 4-pin Connector
Wiring Diagram
4-pin, M12, 3A-250V
1 : Common
2 : NC
3 : Grounding
4 : NO
Characteristics of Actuation
Switch Actuation by 30° Cam

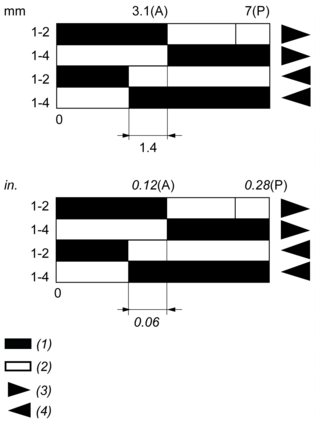

Functional Diagram
(P) Positive opening point
(A) Cam displacement
(1) Closed
(2) Open
(3) Tripping
(4) Resetting
